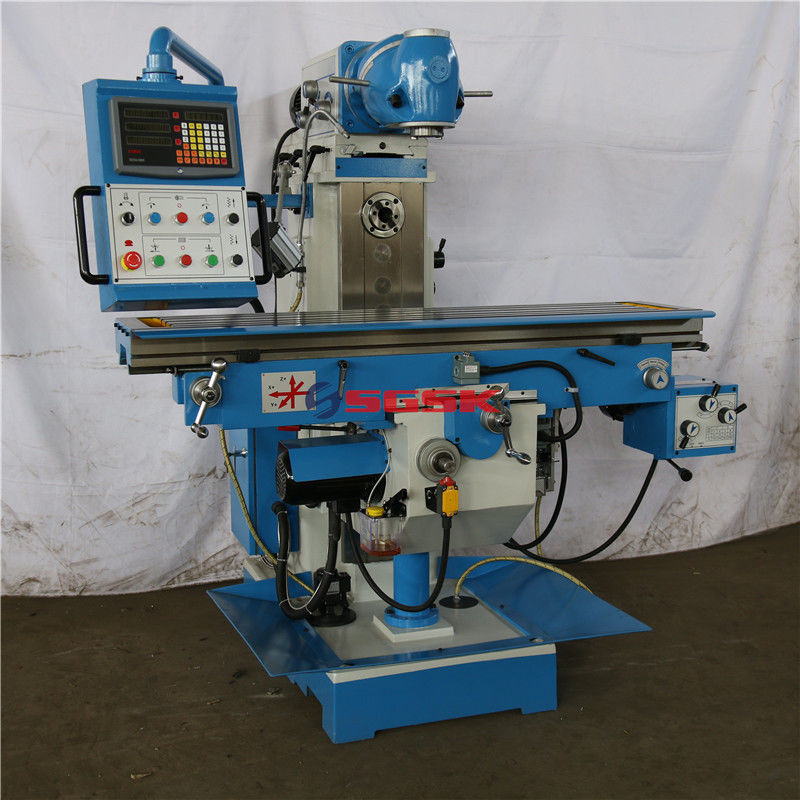

Universal Rotary Head Milling Machine Power Feed X6342 Dro Taiwan Milling Machine

Large Image : Universal Rotary Head Milling Machine Power Feed X6342 Dro Taiwan Milling Machine

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE
Model Number:	X6432

Payment & Shipping Terms:

Price:	$8,590.00/Sets 1-9 Sets
Packaging Details:	Machine model : universal swivel head milling machine power feed X6342 dro taiwan milling machine<br>Package: polywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	1000 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	300 Mm
Table Travel (Z) (mm):	400 Mm	Spindle Taper:	ISO40
Range Of Spindle Speed(r.p.m):	45 - 1660 R.p.m	Condition:	New
Table Travel (mm):	1000x300	Type:	VERTICAL
Spindle Motor Power(kW):	3	Voltage:	380V 440V 220V
Dimension(LWH):	2020x1710x1994mm	Weight (KG):	2100
Warranty:	13 Months	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant	Showroom Location:	Indonesia, Russia
Marketing Type:	Hot Product 2021	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	13 Months
Core Components:	Motor	Product Name:	Swivel Head Milling Machine Power Feed Taiwan Milling Machine
Table Size:	1320x320mm	Table Stroke:	1000x300mm
Distance From Spindle Axis And Column:	100-600mm	Vertical Spindle Speed:	45-1660rpm
Horizontal Spindle Speed Range:	40-1300rpm	T-slot Number/width/spacing:	5-14-63mm
Milling Head Swivel Range:	360 Degree	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	Indonesia, Russia	Port:	Any Port In China

DRO swivel head milling machine X6342 X6436 universal milling machine price

Product Paramenters

Features:

1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable

Products Description

Details Images

Product main technical specifications:

Specifications	Units	X6432	X6436
Table size	mm	1320x320	1320x360
Table stroke	mm	1000x300(manual)	1000x300
T-type slot numbers / width /space	mm	5-14-63	3-14-95
Spindle taper		ISO40	ISO50
Distance from spindle axis to table surface	mm	220-670	170-570
Distance from spindle axis and column	mm	100-600	230-730
Spindle speed range(steps)	rpm	45-1660(V)40-1300(H)	58-1800, 60-1750
Table power feed speed range	mm/min	22-420(X) 22-393(Y) 10-168(Z)	22-420(X) 22-393(Y) 10-168(Z)
Swivel angle of table		-	±35°
Milling head swivel range	°	360	360
Spindle motor power	KW	3(V/H)	4
Overall dimensions	mm	2020x1710x1994	2070x2025x2020
Machine weight	Kg	2100	2480

Recommend Products

Company Profile

Certifications

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
