Multiple Spindle Drilling Milling Machine ZX6350ZA/ZX6350A

Name: Multiple Spindle Drilling Milling Machine ZX6350ZA/ZX6350A
Brand: SGSK
SKU: ZX6350Z
Price: 5 USD
Availability: InStock
Rating: 4.9 (166 reviews)

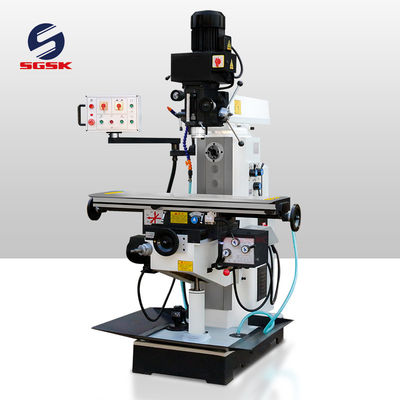

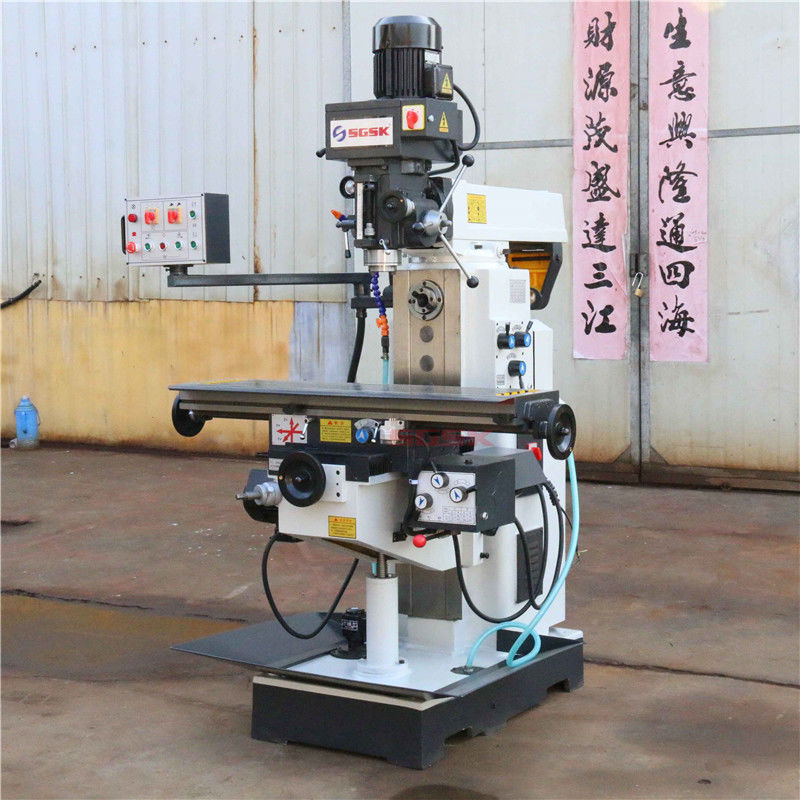

Large Image : Multiple Spindle Drilling Milling Machine ZX6350ZA/ZX6350A

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE
Model Number:	ZX6350Z

Payment & Shipping Terms:

Price:	$5,160.00/Sets 1-9 Sets
Packaging Details:	Name: multiple spindle drill mill ZX6350ZA/ZX6350Z milling and drilling magnetic mill drill<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Drilling & Milling Machine
Max. Drilling Dia. (mm):	50	Range Of Spindle Speed(r.p.m):	90 - 2000 R.p.m
CNC Or Not:	Normal	Voltage:	220V, 380V, 410V
Dimension(LWH):	145014002350	Power (kW):	1.5/3
Weight (KG):	1500 KG	Warranty:	13 Months
Key Selling Points:	Competitive Price	Showroom Location:	Brazil, Peru, Chile
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Product Name:	Multiple Spindle Drill Mill ZX6350ZA Milling And Drilling Magnetic	Application:	Metal Processing
Machine Type:	Milling Drilling Machine	Model:	ZX6350ZA
Color:	Blue	Motor Power:	1.5
Max Drilling Capacity:	50	Table Size:	1200*280
Spindle Taper:	M16	Spindle Travel:	120
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	Brazil, Peru, Chile
Port:	Qingdao Or Any Port In China

multiple spindle drill mill ZX6350ZA/ZX6350Z milling and drilling magnetic mill drill

Product Paramenters

The main performance characteristics:

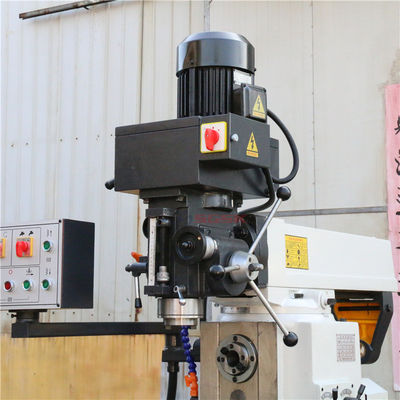

1.Gear transmission for vertical/horizontal milling head
2.X axis auto feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching

Products Description

Product main technical specifications:

Specifications(mm)	ZX6350Z	ZX6350ZA
Max. drilling dia.(mm)	50	50
Max. end milling width(mm)	100	100
Max. vertical milling dia.(mm)	25	25
Max.boring dia.(mm)	120	120
Max. tapping dia.(mm)	M16	M16
Distance from spindle nose to table surface(mm)	80-460	80-460
Spindle taper	ISO40	ISO40
Spindle speed range(r.p.m)	90-2000(V) 40-1300(H)	90-2000(V) 40-1300(H)
Spindle travel(mm)	120	120

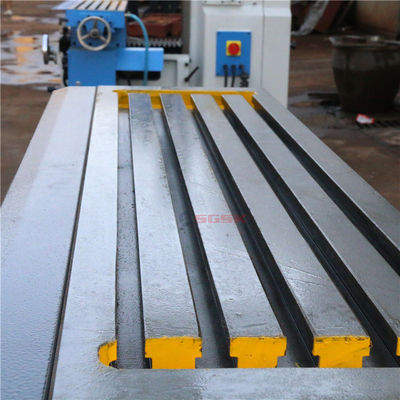

Table size(mm)	1200×280 Optional: 1500x280	1200×280 Optional: 1500x280
Table travel(mm)	680×280 Optional: 980x280	680×280 Optional: 980x280
Table feed speed(mm/min)	X:16-480	X/Y:22-555 Z:300
Overall dimensions (mm)	1500×1600×2200	1500×1600×2200
Spindle motor power (kw)	1.5/2.2(V) 3(H)	1.5/2.2(V) 3(H)
Machine weight (kg)	1300/1400	1400/1500
