Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 800 Mm | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Table Travel (Y) (mm): | 300 Mm |
| Table Travel (Z) (mm): | 320 Mm | Spindle Taper: | ISO50 |
| Range Of Spindle Speed(r.p.m): | 58 - 1300 R.p.m | Condition: | New |
| Table Travel (mm): | 800/300/320 | Type: | Universal |
| Spindle Motor Power(kW): | 4 | Voltage: | 220v 380v 440v |
| Dimension(L*W*H): | 2200x1820x2100mm | Weight (KG): | 2200 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Manufacturing Plant, Factory | Showroom Location: | UAE, Indonesia, Russia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

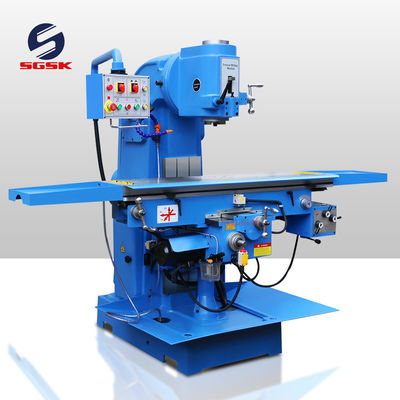

| Core Components: | Motor | Product Name: | Vertical Milling Machine For Sale XW5032 Manual Mills |
| Worktable Size: | 1500x320mm | Table Travel (X.Y.Z): | 800x300mm |
| T-type Slot: | 3-16-70 | Spindle Axis To Table Surface Distance: | 300mm |
| Spindle Taper: | ISO50(7:24) | Spindle Speed Range: | 40-1300 |
| Application: | Metal Machining | Power (kW): | 4 |
| Keyword: | Conventional Milling Machine | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | UAE, Indonesia, Russia | Port: | Qingdao Port |
|
Specifications
|
Units
|
XW5032C
|
|
Table size
|
mm
|
1500x320
|
|
Table travel
|
mm
|
800/300/320
|
|
T slot(number-width-pitch)
|
mm
|
3-16-70
|
|
Spindle taper
|
|
ISO50 7:24
|
|
Spindle speed range
|
rpm
|
40-1300(12steps)
|
|
Distance between spindle nose and table surface
|
mm
|
50-450
|
|
Distance between spindle axis to column surface
|
mm
|
320
|
|
Main motor power
|
kw
|
4
|
|
Weight
|
kg
|
2200
|
|
Overall dimension
|
mm
|
2200x1820x2100
|
