Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 1000 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 320 |
| Table Travel (Z) (mm): | 450 | Spindle Taper: | ISO40 |
| Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m | Condition: | New |
| Table Travel (mm): | 600x240x360 | Type: | Universal |
| Spindle Motor Power(kW): | 3.7/4 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 2600X2200X2550 | Weight (KG): | 2400 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

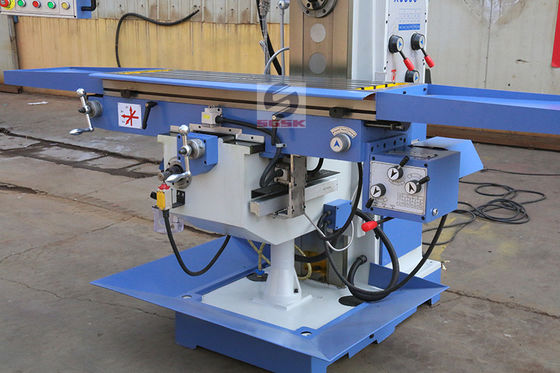

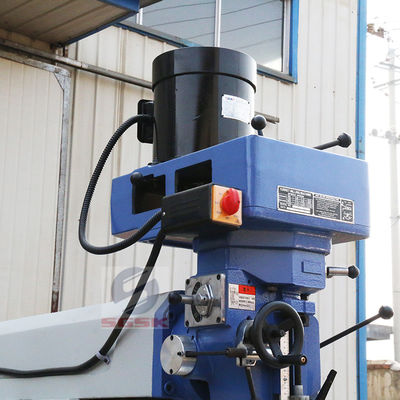

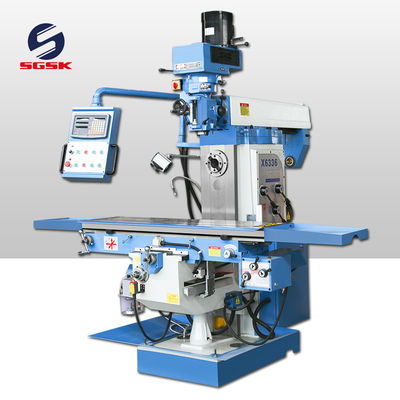

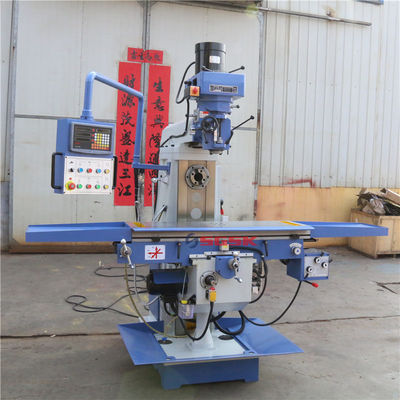

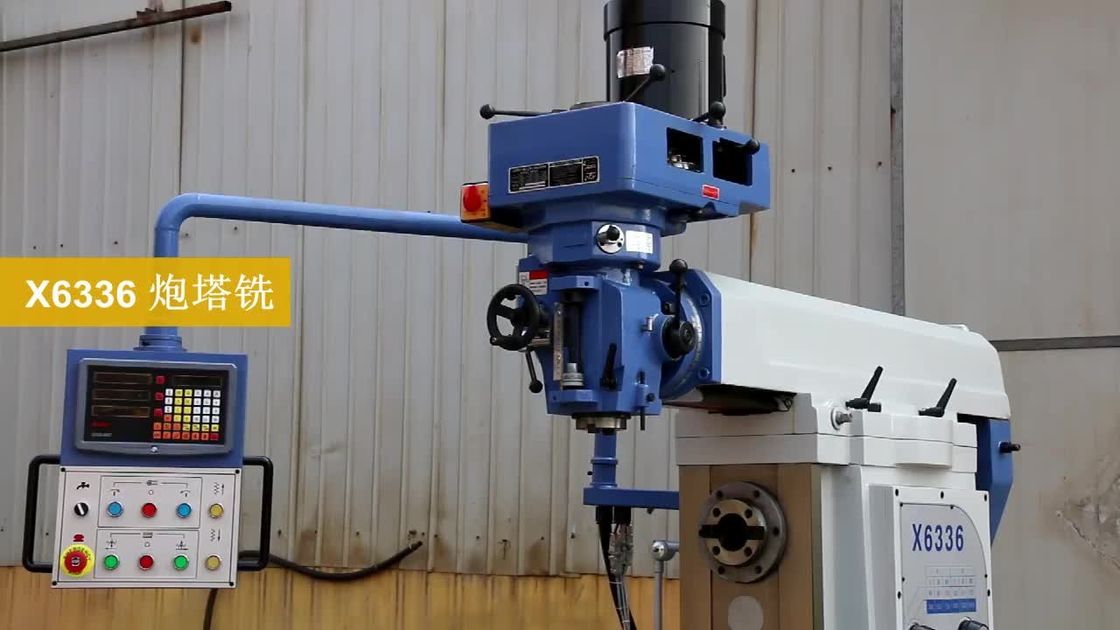

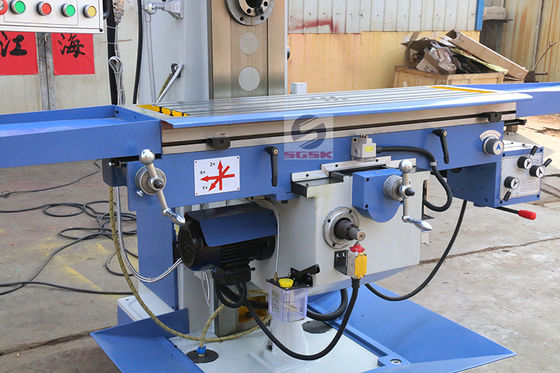

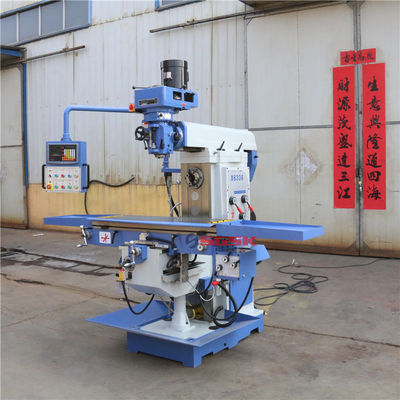

| Core Components: | Motor | Name: | Aluminum Metal Mill X6336 Turret Milling Machine |
| Keyword: | Aluminum Milling Machine Metal Mill Milling Machine | Table Size: | 1500X360mm |
| Color: | Customer Request | Spindle Travel: | 127 |
| Spindle Speed: | 65-4500/80-5440 Rpm | Product Type: | Turret Milling Machine |
| Brand: | SGSK | T-slot: | 3-18-80 |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X6336
|
X6332
|
X6328
|
|
Spindle taper
|
|
7:24 ISO40(V);7:24 ISO50(H)
|
7:24 ISO40(V);7:24 ISO50(H)
|
7:24 ISO40(V);7:24 ISO50(H)
|
|
Horizontal spindle center to table surface
|
mm
|
0-380
|
0-400
|
0-360
|
|
Horizontal spindle center to cross beam surface
|
mm
|
230
|
|
|
|
Spindle speed range
|
r/min
|
(16 steps)66-4540(V)
(12 steps)60-1800(H) |
40-1300
|
40-1300
|
|
Table size
|
mm
|
1500×360
|
1370x320
|
1200x280
|
|
Table travel(X/Y/Z)
|
mm
|
1000/320/350
|
800/300/400
|
600/240/360
|
|
Table X/Y axis auto feed speed
|
mm/min
|
22-555(8steps)740(rapid traverse)
|
|
|
|
Table vertical lifting speed
|
mm/min
|
590
|
|
|
|
T slot(number/width/space)
|
mm
|
3/18/80
|
3/14/70
|
3/14/63
|
|
Cross beam travel
|
mm
|
500
|
300
|
240
|
|
Main motor power
|
kW
|
3.7(V);4(H)
|
3.7(V);4(H)
|
3.7(V);4(H)
|
|
Table auto feed motor power
|
W
|
750
|
|
|
|
Table lifting motor power
|
W
|
1100
|
|
|
|
Coolant motor power
|
W
|
90
|
|
|
|
Coolant liquid
|
L/min
|
25
|
|
|
|
N.W./G.W.
|
kg
|
2340/2500
|
2000
|
1400
|
|
Machine size
|
mm
|
2220x1790x2360
|
2200x1820x2350
|
1550x1650x2250
|
