Vertical And Horizontal Rotary Head Milling Machine X6436 Rotation Table Milling Hot Sale

Name: Vertical And Horizontal Rotary Head Milling Machine X6436 Rotation Table Milling Hot Sale
Brand: SGSK
SKU: X6436
Price: 9 USD
Availability: InStock
Rating: 4.5 (165 reviews)

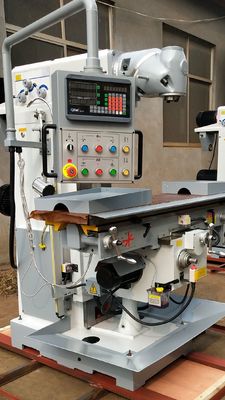

Large Image : Vertical And Horizontal Rotary Head Milling Machine X6436 Rotation Table Milling Hot Sale

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Certification:	CE
Model Number:	X6436

Payment & Shipping Terms:

Price:	$9,600.00/Sets >=1 Sets
Packaging Details:	Machine model:Vertical and horizontal milling machine X6436 rotation table milling hot sale<br>Package:one machine with one plywood case and steel set below
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	1000 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	320 Mm
Table Travel (Z) (mm):	450 Mm	Spindle Taper:	ISO40(V) ISO50(H)
Range Of Spindle Speed(r.p.m):	48 - 1600	Condition:	New
Table Travel (mm):	1500x360mm	Type:	Rotary Head Milling Machine
Spindle Motor Power(kW):	4kw	Voltage:	220V/380V8/415V
Dimension(LWH):	255020502050mm	Weight (KG):	2580
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Manufacturing Plant, Factory	Showroom Location:	None
After-sales Service Provided:	Online Support, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	None	Name:	Vertical And Horizontal Milling Machine X6436 Rotation Table Milling
Table Size:	1500*360mm	Table Stroke:	1000x320x450mm
T-type Slot Numbers / Width /space:	3-18-80mm	Spindle Speed Range:	48-1660(V) , 40-1300(H)
Range Of Table Feed:	XY:22-555 Z:electric	Milling Head Swivel Range:	360
Spindle Motor Power:	4kw	Overall Dimensions:	255020502050mm
Port:	Qingdao Or Any Port Of China

Vertical and horizontal milling machine X6436 rotation table milling hot sale

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable

Products Description

Details Display

Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and
can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.

Product main technical parameters:

Specifications	Units	X6432	X6436
Table size	mm	1500x320	1500x360
Table travel	mm	1000/320/400	1000/320/450
T-slot numbers / width /space	mm	3-16-60	3-18-80
Spindle taper		ISO40(V) ISO40(H)	ISO40(V) ISO50(H)
Spindle speed range	rpm	48-1660rpm(V) 40-1300(H)	48-1660rpm(V) 40-1300(H))
Distance between spindle nose and table surface	mm	120-520	150-550
Distance between spindleaxis and table surface	mm	0-400	0-400
Range of table feed	mm /min	XY:22-555 Z:electric	XY:22-555 Z:electric
Milling head swivel range	°	360	360
Spindle motor power	kw	3(V)/3(H)	4(H)/4(H)
Feed motor power	kw	1.1	1.1
Weight	kg	2100	2580
Overall dimension	mm	2050x1750x2000	2550x2050x2050
