Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 600 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 280 |
| Table Travel (Z) (mm): | 400 | Spindle Taper: | ISO40 |
| Range Of Spindle Speed(r.p.m): | 48 - 1660 R.p.m | Condition: | New |
| Table Travel (mm): | 600*280*400 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 3 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 1660*1500*1750 | Weight (KG): | 1400 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

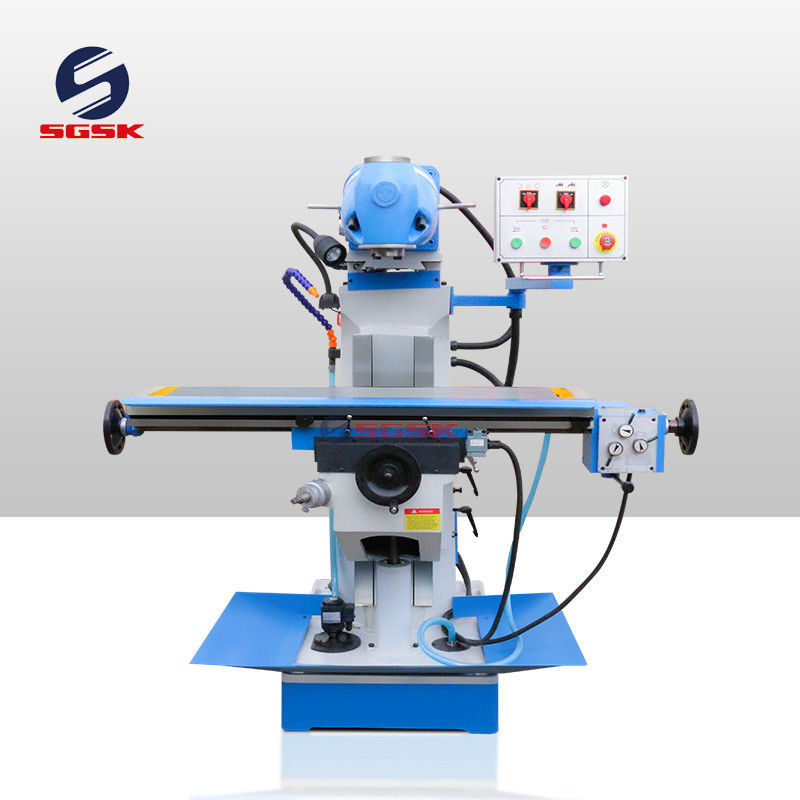

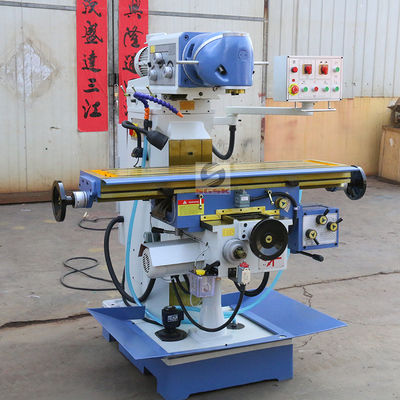

| Core Components: | Motor | Name: | Milling Machine 3 Axis X6226 Rotary Head Milling Machine |
| Function: | Metal Milling | Color: | Blue |
| Table Size: | 1200*260 | Spindle Speed: | 48-1660 |
| Precision: | High Precision | T-slots(number *width *pitch ): | 5-14*40 |
| Brand: | SGSK | Motor: | 3 |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X6232
|
X6226
|
|
Table size
|
mm
|
1370x320
|
1200x260
|
|
Table travel
|
mm
|
800/320/400
|
600/280/400
|
|
T-slot numbers / width /space
|
mm
|
3-16-60
|
5-14-40
|
|
Spindle taper
|
|
ISO40
|
ISO40
|
|
Spindle speed range
|
rpm
|
48-1660rpm
|
48-1660rpm
|
|
Distance between spindle nose and table surface
|
mm
|
120-520
|
100-500
|
|
Distance between spindle axis and table surface
|
mm
|
0-400
|
|
|
Range of table feed
|
mm/min
|
XY:22-555 Z:electric
|
X:48-370 YZ:manual
|
|

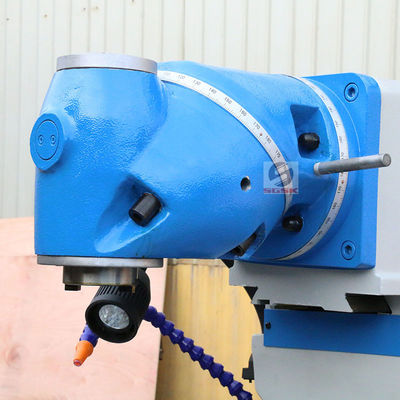

Milling head swivel range
|
°
|
360
|
360
|
|
Spindle motor power
|
kw
|
3
|
3
|
|
Feed motor power
|
kw
|
1.1
|
0.75
|
|
Weight
|
kg
|
1700
|
1400
|
|
Overall dimension
|
mm
|
1700x1560x1750
|
1660x1500x1750
|
