Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 600 Mm | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Table Travel (Y) (mm): | 320 Mm |
| Table Travel (Z) (mm): | 370 Mm | Spindle Taper: | ISO40 |
| Range Of Spindle Speed(r.p.m): | 35 - 1660 R.p.m | Condition: | New |
| Table Travel (mm): | 600x320x370 | Type: | VERTICAL |
| Voltage: | 380V 440V 220V | Dimension(L*W*H): | 1700x1560x1750mm |
| Weight (KG): | 1420 | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level | Applicable Industries: | Garment Shops, Manufacturing Plant, Home Use, Factory |
| Showroom Location: | UAE, Mexico, Russia | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |

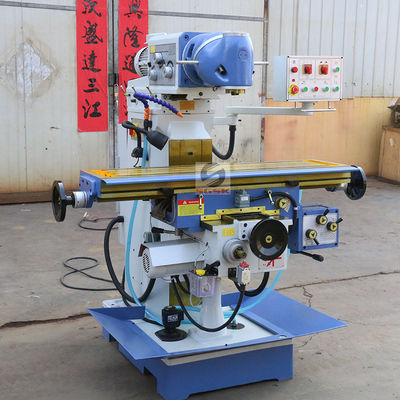

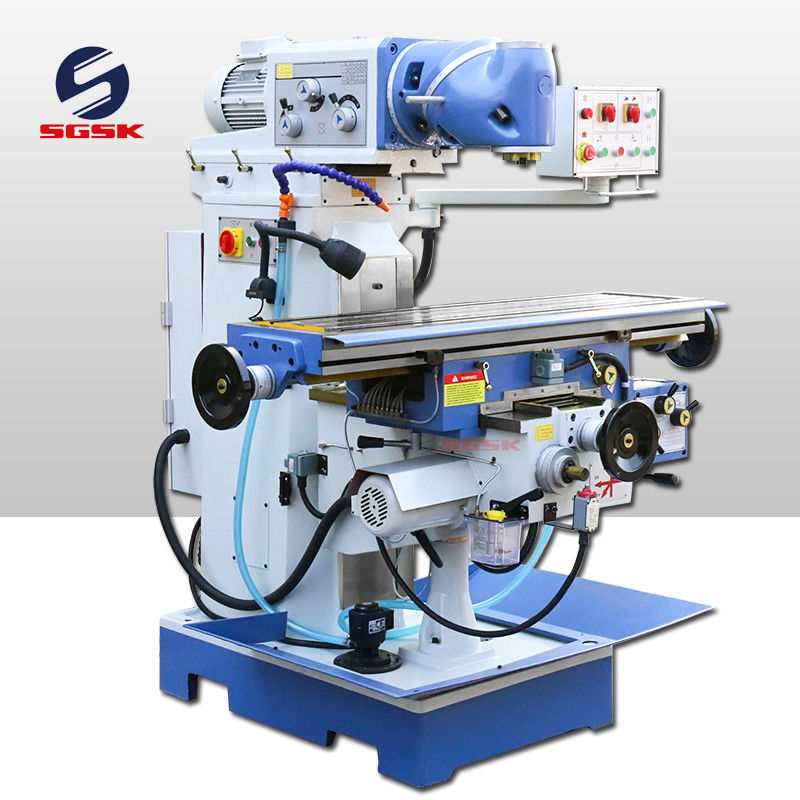

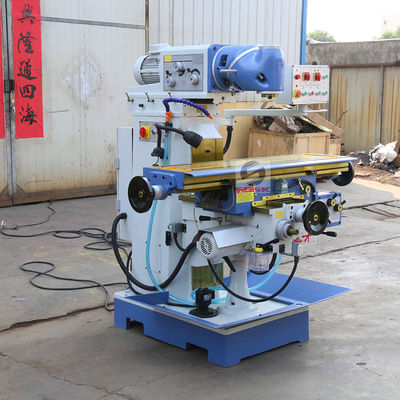

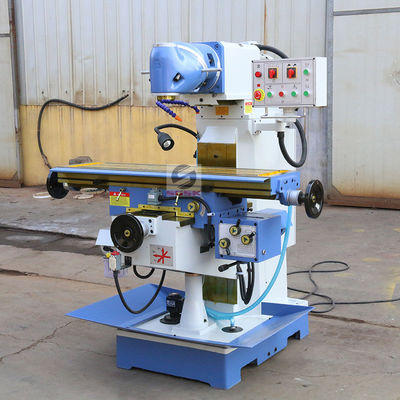

| Product Name: | Swivel Head Milling Machine For Metal X6232 Metal Milling Machine | Table Size: | 1250x250mm |
| Table Stroke: | 600x320x370mm | Spindle Speed: | 35-1660rpm |
| Spindle Taper: | 7:24 ISO40 | Distance From Spindle Axis And Column: | 0-500mm |
| Spindle Nose To Table Surface: | 120-490mm | T Slot: | 3-14-70mm |
| Lifting Motor Power: | 0.75kw | Coolant Pump Liquid: | 25L/min |
| After-sales Service Provided: | Free Spare Parts, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | UAE, Indonesia, Russia, None | Port: | Any Port In China |
|
Specifications
|
Units
|
X6232
|
|
Spindle taper
|
|
7:24 ISO40
|
|
Distance from spindle nose to table surface
|
mm
|
120-490
|
|
Distance from spindle axis to column surface
|
mm
|
0-500
|
|
Spindle speed range(steps)
|
rpm
|
35-1660
|
|
Vertical milling head rotary angle
|
°
|
360
|
|
Table size
|
mm
|
1250x250
|
|
Table travel
|
mm
|
600x320x370
|
|
Table motorized feed speed (longitudinal /cross)
|
Mm/min
|
(8 steps)22-555 (fast 810)
|
|
Table vertical lifting speed
|
Mm/min
|
560
|
|
T slot
|
mm
|
3-14-70
|
|
Main motor power
|
KW
|
2.2
|
|
Motorized feed motor power
|
KW
|
0.75
|
|
Lifting motor power
|
KW
|
0.75
|
|
Coolant pump motor power
|
W
|
90
|
|
Coolant pump liquid
|
L/min
|
25
|
|
Overall dimensions
|
mm
|
1700x1560x1750
|
|
N.W./G.W.
|
Kg
|
1320/1420
|
