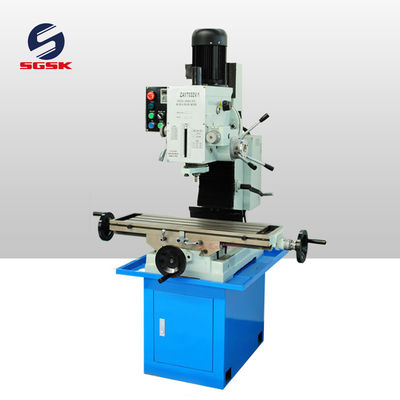

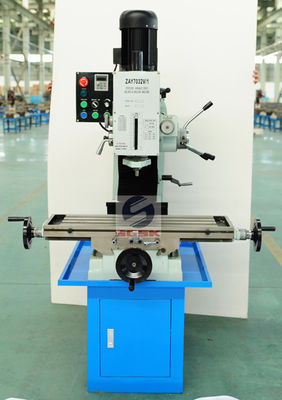

hobby mill drill ZAY7032V-1 milling drilling machine

Name: hobby mill drill ZAY7032V-1 milling drilling machine
Brand: SGSK
SKU: ZAY7032V-1
Price: 2 USD
Availability: InStock
Rating: 4.9 (143 reviews)

Large Image : hobby mill drill ZAY7032V-1 milling drilling machine

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Model Number:	ZAY7032V-1

Payment & Shipping Terms:

Price:	$2,620.00/Sets 1-4 Sets
Packaging Details:	Name: hobby mill drill ZAY7032V-1 milling drilling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Drilling & Milling Machine
Max. Drilling Dia. (mm):	32	Range Of Spindle Speed(r.p.m):	100 - 2800 R.p.m
CNC Or Not:	Normal	Voltage:	220V, 380V, 410V
Dimension(LWH):	7708801160	Power (kW):	1.1
Weight (KG):	370 KG	Warranty:	13 Months
Key Selling Points:	Competitive Price	Showroom Location:	Brazil, Peru, Chile
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Product Name:	Hobby Mill Drill ZAY7032V-1 Milling Drilling Machine	Application:	Metal Processing
Machine Type:	Milling Drilling Machine	Model:	ZAY7032V-1
Color:	Blue	Motor Power:	1.1
Max Drilling Capacity:	32mm	Table Size:	800*240
Spindle Taper:	MT3/R8	Spindle Travel:	130
Port:	Qingdao Or Any Port In China

hobby mill drill ZAY7032V-1 milling drilling machine

Product Paramenters

Features:

The main performance characteristics: Variable speed Milling, drilling, boring, reaming and tapping Head swivels 90 vertical Micro feed precision Adjustable gibs on table precision. Strong rigidity, powerful cutting and precisely positioning. Standard accessories: Allen wrench Drift Spanner Drill chuck rod Screw-driver Draw bar and gasket Optional accessories: Stand Oil basin Power feed attachment Machine vice Drill chuck Milling cutter holder Reducing sleeve Mill chuck Boring rod Tapping electrical system Coolant system

Products Description

Product main technical specifications:

ITEM	ZAY7032V/1	ZAY7040V/1	ZAY7045V/1
Max.drilling capacity	32mm	40mm	45mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Distance from spindle nose to table	450mm	450mm	450mm
Min.distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Range of spindle speed(2 steps)	100-530,530-2800r.p.m,	100-530,530-2800r.p.m,	100-530,530-2800r.p.m,
Auto-feeding step of spindle	6	6	6
Automatic feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor power(AC)	1.1KW	1.1KW	1.5KW
Voltage/Frequency	110V or 220V	110V or 220V	110V or 220V
Net weight/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm	770×880×1160mm	770×880×1160mm
