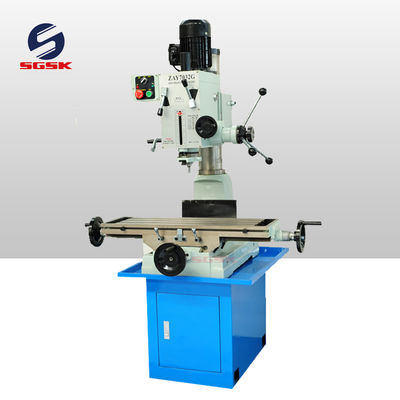

ZAY7040FG Gear Head Drilling Milling Machine Metal Bench

Name: ZAY7040FG Gear Head Drilling Milling Machine Metal Bench
Brand: SGSK
SKU: ZAY7040FG
Price: 1 USD
Availability: InStock
Rating: 4.5 (155 reviews)

Large Image : ZAY7040FG Gear Head Drilling Milling Machine Metal Bench

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Model Number:	ZAY7040FG

Payment & Shipping Terms:

Price:	$1,960.00/Sets 1-4 Sets
Packaging Details:	Name: metal bench mill drill ZAY7040FG gear head drilling milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Drilling & Milling Machine
Max. Drilling Dia. (mm):	40	Range Of Spindle Speed(r.p.m):	80 - 1250 R.p.m
CNC Or Not:	Normal	Voltage:	220V, 380V, 410V
Dimension(LWH):	7708801860	Power (kW):	1.1
Weight (KG):	373 KG	Warranty:	13 Months
Key Selling Points:	Competitive Price	Showroom Location:	Brazil, Peru, Chile
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Product Name:	Metal Bench Mill Drill ZAY7040FG Gear Head Drilling Milling Machine	Application:	Metal Processing
Machine Type:	Milling Drilling Machine	Model:	ZAY7040FG
Color:	Blue	Motor Power:	1.1
Max Drilling Capacity:	40mm	Table Size:	800*240
Spindle Taper:	MT3/R8	Spindle Travel:	130
Port:	Qingdao Or Any Port In China

metal bench mill drill ZAY7040FG gear head drilling milling machine

Product Paramenters

Features:

The main performance characteristics: Gear-driven type and square column Milling, drilling, tapping, boring and reaming Head swivels 90 verticaly Micro feed precision Adjustable gibs on table precision. Strong rigidity, powerful cutting and precisely positioning. Standard accessories: Allen wrench Drift Spanner Drill chuck rod Screw-driver Draw bar and gasket Optional accessories: Stand Oil basin Power feed attachment Machine vice Drill chuck Milling cutter holder Reducing sleeve Mill chuck Boring rod Tapping electrical system Coolant system

Product main technical specifications:

ITEM	ZAY7025FG	ZAY7032FG	ZAY7040FG	ZAY7045FG
Max Face mill capacity	25mm	32mm	40mm	45mm
Max End mill capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Max.distance from spindle nose to table	445mm	450mm	450mm	450mm
Min.distance from spindle axis to column	203mm	260mm	260mm	260mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angle of headstock(perpendicularly)	90°	90°	90°	90°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor Power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Net weight/gross weight	180kg/240kg	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160m
