Conventional Vertical Milling Machine X5040 universal knee type

Name: Conventional Vertical Milling Machine X5040 universal knee type
Brand: SGSK
SKU: X5040
Price: 19 USD
Availability: InStock
Rating: 4.5 (133 reviews)

Large Image : Conventional Vertical Milling Machine X5040 universal knee type

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Model Number:	X5040

Payment & Shipping Terms:

Price:	$19,850.00/Sets 1-9 Sets
Packaging Details:	Machine model:Conventional milling machine X5040 universal knee type milling machine<br>Package size : 2560x2130x2298mm<br>Weight: 4250kgs
Supply Ability:	1 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	900 Mm	Number Of Axes:	3
Machining Capacity:	Heavy Duty	Table Travel (Y) (mm):	315 Mm
Table Travel (Z) (mm):	385 Mm	Spindle Taper:	ISO50
Range Of Spindle Speed(r.p.m):	30 - 1500 R.p.m	Condition:	New
Table Travel (mm):	1700x400	Type:	VERTICAL
Voltage:	220V 380V 415V	Dimension(LWH):	2560x2160x2400mm
Weight (KG):	4250	Warranty:	13 Months
Key Selling Points:	Long Service Life	Applicable Industries:	Manufacturing Plant, Home Use, Factory
Showroom Location:	UAE, Indonesia, Russia	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	13 Months	Core Components:	Motor
Product Name:	Conventional Milling Machine X5040 Universal Knee Type Milling Machine	Table Size:	1700x400mm
T-type Slot:	3-18-90	Max. Load Of Table:	800kg
Longitudinal Travel (manual/auto):	900/800mm	Transverse Travel(manual/auto):	315/365mm
Vertical Travel (manual/auto):	385/365mm	Spindle Travel:	85mm
Max. Swivel Angle Of Table:	±45°	Power (kW):	11
Port:	Any Port In China

Conventional milling machine X5040 universal knee type milling machine

Product Paramenters

Features:

1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application:
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Products Description

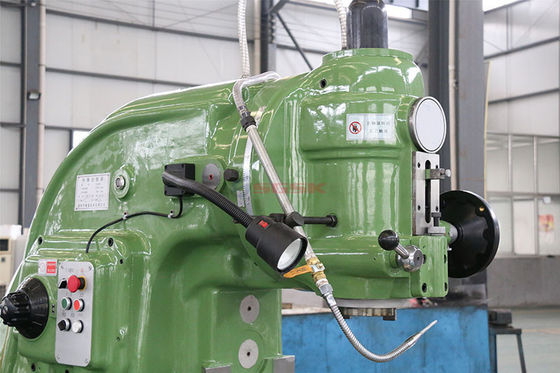

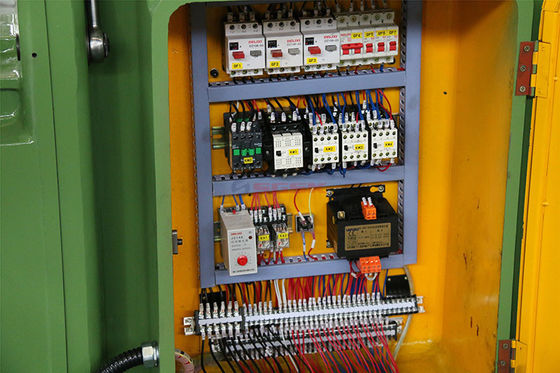

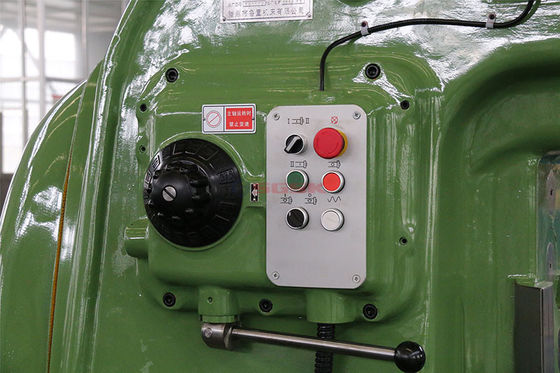

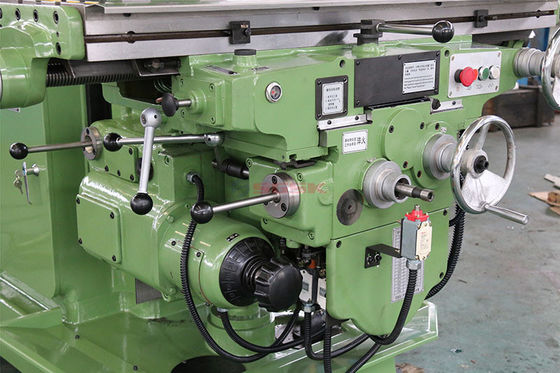

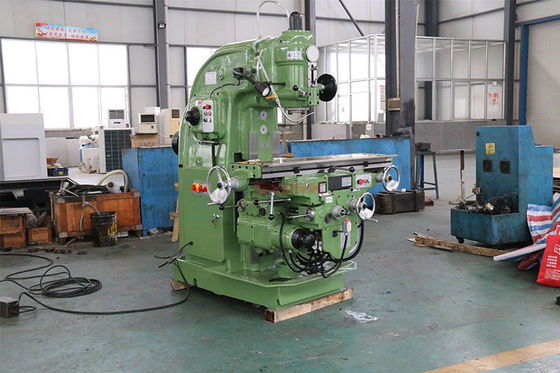

Details Images

Product main technical specifications:

Specifications	Units	X5040
Table size	mm	1700×400
Table load	kg	800
T slot(number-width-pitch)	mm	3-18-90
Table travel	mm	900/880 315/300 385/365
Range of table feed	mm /min	XY:23.5-1180 Z:8-394
Rapid speed of table	mm /min	XY:2300 Z:770
Spindle taper		ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)
Swivel angle of vertical milling head	°	±45
Distance between spindle nose and table surface	mm	130-515
Spindle motor power	kw	11
Feed motor power	kw	1.5
Weight	kg	4250/4500
Overall dimension	mm	2560×2160×2300

Recommend Products

Company Profile

Certifications

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
