Universal Rotary Head Milling Machine XQ6226 Conventional Milling Price

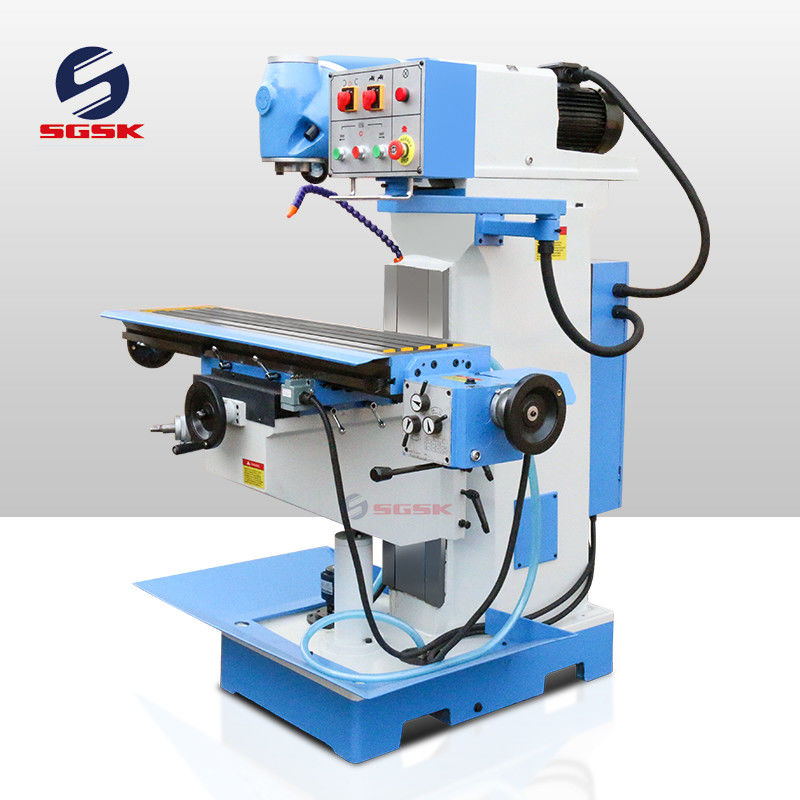

Large Image : Universal Rotary Head Milling Machine XQ6226 Conventional Milling Price

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE ISO9001
Model Number:	XQ6226B

Payment & Shipping Terms:

Price:	$4,900.00/Sets >=1 Sets
Packaging Details:	Machine model:Universal Swivel Head Milling Machine XQ6226 conventional miling price<br>Package:one machine with one plywood case and steel set below
Supply Ability:	100 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	600 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	270 Mm
Table Travel (Z) (mm):	380 Mm	Spindle Taper:	ISO40
Range Of Spindle Speed(r.p.m):	45 - 1660	Condition:	New
Table Travel (mm):	600*270mm	Type:	Rotary Head Milling Machine
Spindle Motor Power(kW):	2.2kw	Voltage:	220V/380V8/415V
Dimension(LWH):	1655x1500x1730mm	Weight (KG):	1480
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Manufacturing Plant, Factory	Showroom Location:	None
Name:	Universal Swivel Head Milling Machine XQ6226 Conventional Miling Price	Table Size:	1120x260mm
Spindle Speed Range:	45-1660rpm	Table Stroke:	600x270mm
Dis From Spindle Nose To Table Surface:	100-480mm	Max. End Milling Width:	125mm
Max. Vertical Milling Dia.:	25mm	Spindle Motor Power:	2.2kw
Overall Dimensions:	1655x1500x1730mm	After-sales Service Provided:	Online Support, Video Technical Support
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	UAE, Indonesia, Russia
Port:	Any Port Of CChina

Universal Swivel Head Milling Machine XQ6226 conventional milling price

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;

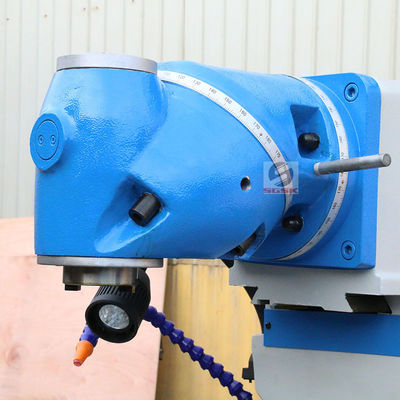

2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;

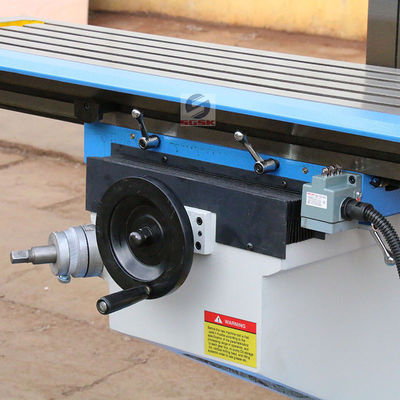

4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable
6.Spindle two head design, can easily achieve vertical, horizontal milling conversion and arbitrary angle combination, and stiffer
than the three section head has greatly improved.
7.Two heads configuration precision positioning pin , accurate vertical horizontal milling conversion, more convenient operation.

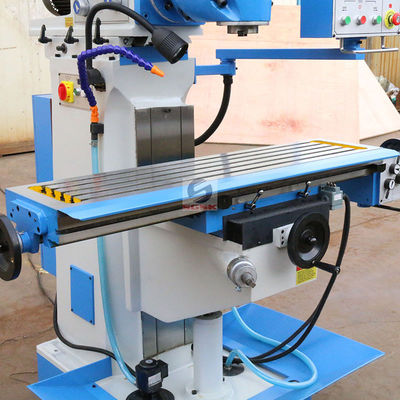

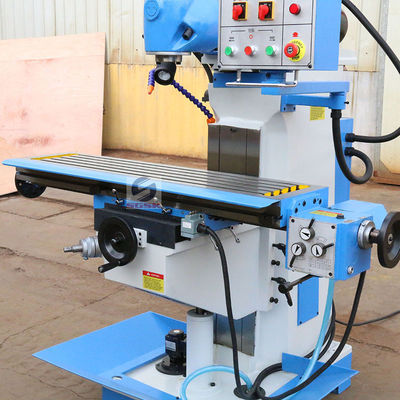

Details Display

Application:
1, Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling
and can vertical milling.
2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. 3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other
industries of the ideal processing equipment.

Product main technical parameters:

Specifications	Units	XQ6226B	XQ6226A	XQ6226-1G
Table size	mm	1120x260	1120x260	1120x260
Table stroke	mm	600x270	600x270	600x300
Distance from spindle nose to table surface	mm	100-480	100-480	100-480
Max. end milling width	mm	125	125	125
Max. vertical milling dia.	mm	25	25	25
Spindle taper		ISO40	ISO40	ISO40
Spindle speed range	rpm	45-1660	45-1660	45-1660
Swivel angle of swivel head		360°	360°	360°
Spindle motor power	KW	2.2	2.2	2.2
Overall dimensions	mm	1655x1500x1730	1655x1500x1730	1655x1325x1730
Machine weight	Kg	1480	1400	1300

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
