X6226 universal Rotary Head Milling Machine Medium Duty

Name: X6226 universal Rotary Head Milling Machine Medium Duty
Brand: SGSK
SKU: X6226
Price: 5 USD
Availability: InStock
Rating: 4.9 (121 reviews)

Large Image : X6226 universal Rotary Head Milling Machine Medium Duty

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE ISO9001
Model Number:	X6226

Payment & Shipping Terms:

Price:	$5,390.00/Sets 1-4 Sets
Packaging Details:	Machine model:Machines milling X6226 universal rotary head milling machine<br>Package:one machine with one plywood case and steel set below
Supply Ability:	100 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	600 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	280
Table Travel (Z) (mm):	400	Spindle Taper:	ISO40
Range Of Spindle Speed(r.p.m):	48 - 1660 R.p.m	Condition:	New
Table Travel (mm):	600/280/400mm	Type:	Rotary Head Milling Machine
Spindle Motor Power(kW):	3	Voltage:	220V/380V8/415V
Dimension(LWH):	166015001750mm	Weight (KG):	1400
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Factory	Showroom Location:	None
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, Engine, Gearbox	Name:	X6226 Universal Rotary Head Milling Machine
Table Size:	1200*260mm	Table Travel:	600/280/400mm
T Slot(number-width*pitch):	5-14*40	Spindle Speed Range(steps):	48-1660rpm (12)
Dis Between Spindle And Table Surface:	100-500mm	Swivel Angle Of Milling Head:	360
Main Motor Power:	3kw	Feed Motor Power:	0.75kw
After-sales Service Provided:	Online Support, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	Indonesia, Russia	Port:	Any Port Of CChina

Machines milling X6226 universal rotary head milling machine

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable

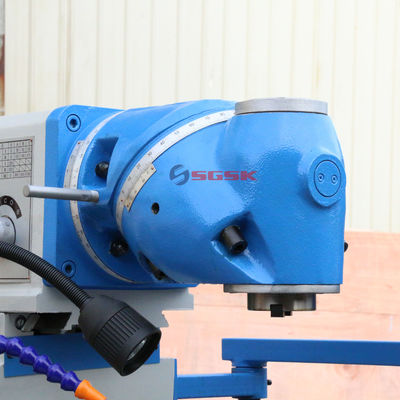

6.Spindle two head design, can easily achieve vertical, horizontal milling conversion and arbitrary angle combination, and stiffer than the three section head has greatly improved.
7.Two heads configuration precision positioning pin , accurate vertical horizontal milling conversion, more convenient operation.

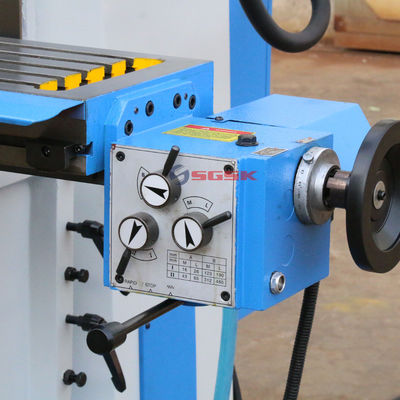

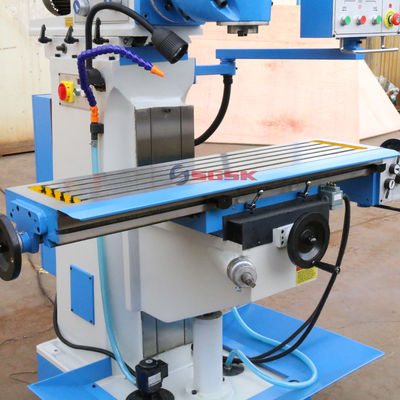

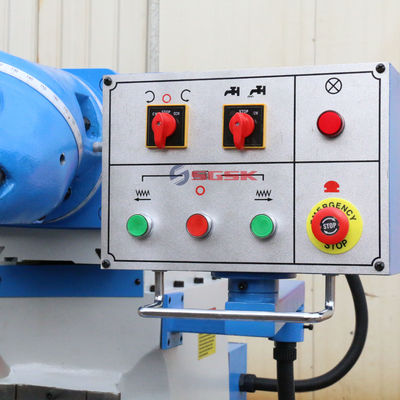

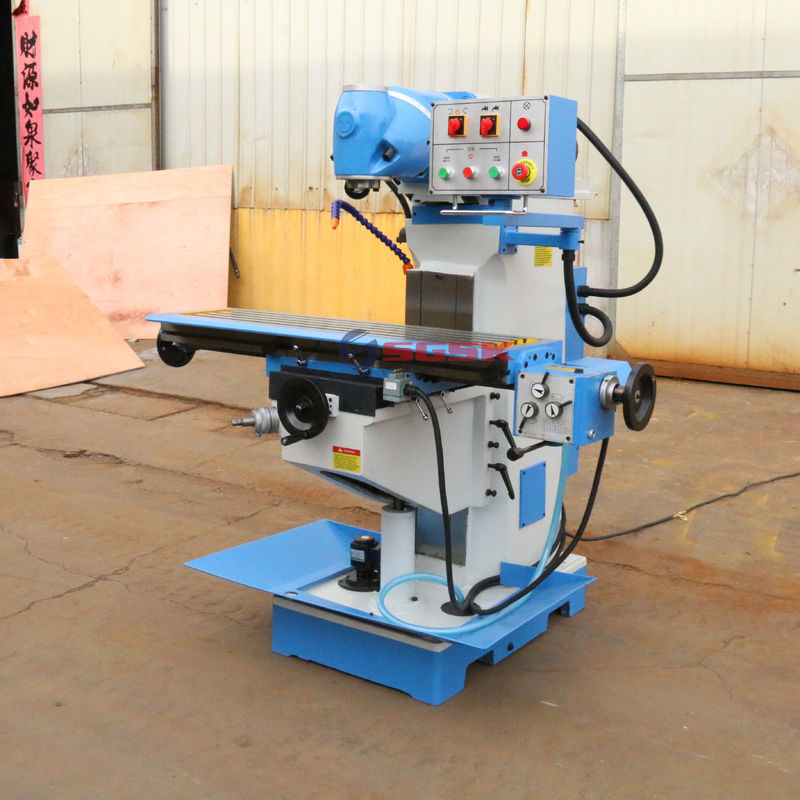

Details Display

Application:
1, Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. 3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical parameters:

SPECIFICATIONS	Units	X6226
Table size	mm	1200*260
Table travel	mm	600/280/400
T slot(number-width*pitch)	-	5-14*40
Spindle taper	-	ISo40
Spindle speed range(steps)	rpm	48-1660 (12)
Distance between spindle nose and table surface	mm	100-500
Table feed range (steps)	mm /min	X:48-370 (8) YZ:manual
Swivel angle of milling head	°	360
Main motor power	kw	3
Feed motor power	kw	0.75
Machine weight	kg	1400
overall dimension	mm	166015001750

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
