Universal Rotary Head Milling Machine X6432 vertical horizontal milling machine

Name: Universal Rotary Head Milling Machine X6432 vertical horizontal milling machine
Brand: SGSK
SKU: X6432
Price: 8 USD
Availability: InStock
Rating: 5 (150 reviews)

Large Image : Universal Rotary Head Milling Machine X6432 vertical horizontal milling machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Certification:	CE ISO9001
Model Number:	X6432

Payment & Shipping Terms:

Price:	$8,390.00/Sets >=1 Sets
Packaging Details:	Machine model: Universal rotary head milling machine X6432 vertical horizontal milling machine<br>Package:one machine with one plywood case and steel set below
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	1000 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	300 Mm
Table Travel (Z) (mm):	450 Mm	Spindle Taper:	ISO40
Range Of Spindle Speed(r.p.m):	45 - 1660 R.p.m	Condition:	New
Table Travel (mm):	1000x300	Type:	Rotary Head Milling Machine
Voltage:	220V/380V8/415V	Dimension(LWH):	202017101994mm
Weight (KG):	2100	Warranty:	1 Year
Key Selling Points:	Long Service Life	Applicable Industries:	Garment Shops, Manufacturing Plant, Factory
Showroom Location:	Indonesia, Russia	Marketing Type:	Ordinary Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Name:	Rotary Head Milling Machine X6432 Vertical Horizontal Milling Machine	Table Size:	1320*320mm
Table Stroke:	1000*300mm	T-type Slot Numbers / Width /space:	5-14-63
Spindle Speed Range(steps:	45-1660(V)40-1300(H)	Table Power Feed Speed Range:	22-420(X) 22-393(Y) 10-168(Z
Milling Head Swivel Range:	360	Spindle Motor Power:	3(V/H)kw
Power (kW):	3	After-sales Service Provided:	Online Support, Video Technical Support
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	Indonesia, Russia
Port:	Any Port Of CChina

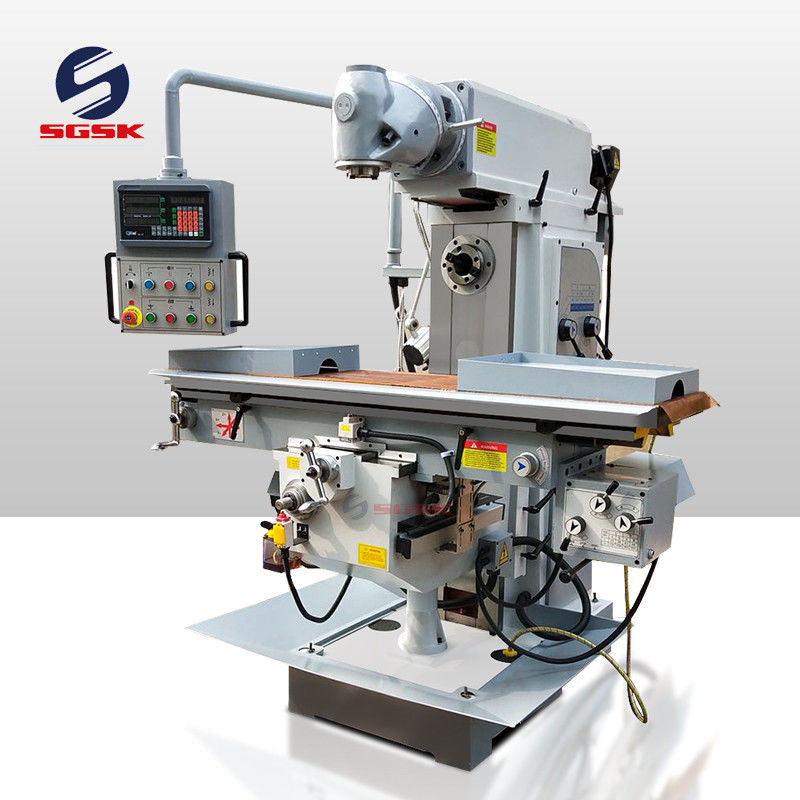

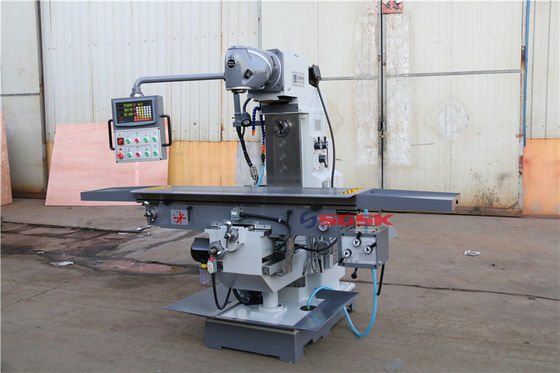

Universal rotary head milling machine X6432 vertical horizontal milling machine

Products Description

Details Images

Product Paramenters

Features:

1.It can realize vertical and horizontal milling two processing function;

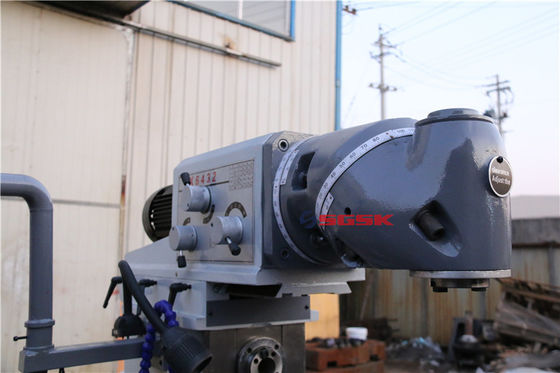

2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools,that can lie milling and can vertical milling.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical specifications:

Specifications	Units	X6432
Table size	mm	1320x320
Table stroke	mm	1000x300(manual)
T-type slot numbers / width /space	mm	5-14-63
Spindle taper		ISO40
Distance from spindle axis to table surface	mm	220-670
Distance from spindle axis and column	mm	100-600
Spindle speed range(steps)	rpm	45-1660(V)40-1300(H)
Table power feed speed range	mm/min	22-420(X) 22-393(Y) 10-168(Z)
Swivel angle of table		-
Milling head swivel range	°	360
Spindle motor power	KW	3(V/H)
Overall dimensions	mm	2020x1710x1994
Machine weight	Kg	2100

Recommend Products

Company Profile

Certifications

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
