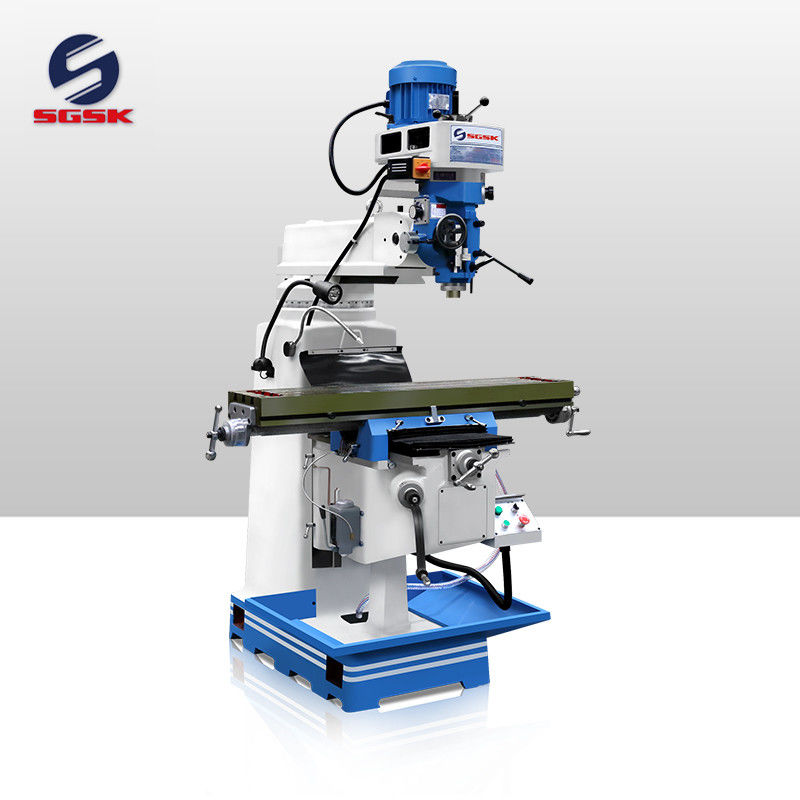

Machining milling 4H vertical milling machine turret

Large Image : Machining milling 4H vertical milling machine turret

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE
Model Number:	4H

Payment & Shipping Terms:

Price:	$4,790.00/Sets 1-9 Sets
Packaging Details:	Machine model:Machining milling 4H vertical milling machine turret<br>Package:one machine with one plywood case and steel set below

Contact Now

Detailed Product Description

Table Travel (X) (mm):	780 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	400 Mm
Table Travel (Z) (mm):	500 Mm	Spindle Taper:	R8 Optional: ISO30/ISO40
Range Of Spindle Speed(r.p.m):	65 - 4500 R.p.m	Condition:	New
Table Travel (mm):	780400500	Type:	VERTICAL
Spindle Motor Power(kW):	2.2	Voltage:	220V/380V/415V
Dimension(LWH):	151615502080mm	Weight (KG):	1650
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Manufacturing Plant, Factory	Showroom Location:	Indonesia, Russia
Marketing Type:	Hot Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor	Product Name:	Machining Milling 4H Vertical Milling Machine Turret
Machine Type:	Turret Milling Machine	Table Size:	1370*350mm
Spindle Speed:	65-4500Rpm	Spindle Travel:	127mm
Spindle Nose To Working Table Distance:	0-405mm	Head Rotation (left - Right ):	90°
Head Rotation (front - Rear):	45°	Telescopic Arm Stroke:	470mm
T- Slot Number And Size:	3x16mm	After-sales Service Provided:	Online Support, Video Technical Support
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	Indonesia, Russia

Machining milling 4H vertical milling machine turret

Product Paramenters

Features:

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..

Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Product main technical specifications:

Specifications			Units	4H	5H
Table size			mm	1270x254(10”x50”)	1370x305(54” x 12”)
T- slot number and size			mm	3x16	3x16
Working table stroke		X	mm	780	810
		Y		400	420
		Z		500	500
Telescopic arm stroke			mm	470	500
Spindle nose to working table distance			mm	0-405	0-350
Taper of spindle hole				Standard: R8 Optional: ISO30/ISO40	Standard:ISO40
Spindle speed			r/min	Standard: 16(shift grade) 50HZ:65-4500 60HZ:80-5440	Standard: 16(shift grade) 50HZ:65-4500 60HZ:80-5440
Spindle speed			r/min	Optional:(variable)65-4000	Optional: Variable 65-3750
Spindle travel			mm	127	127
Spindle feed rate			mm/r	Three steps: 0.04(0.0015”)/0.08(0.003”) /0.15(0.006”)	Three steps: 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”)
Spindle motor power			KW/HP	2.25/5HP	3.75/5
Head rotation (left - right )			°	90°	90°
Head rotation (front - rear)			°	45°	45°
Packaging size (Lx W x H)	Single package		mm	1516x1550x2080	1566x1650x2080
	Two sets of packaging			1650x1790x2170	1720x1800x2175
	Three sets of packaging			1650x2285x2235
Gross Weight			Kg	1650	1700

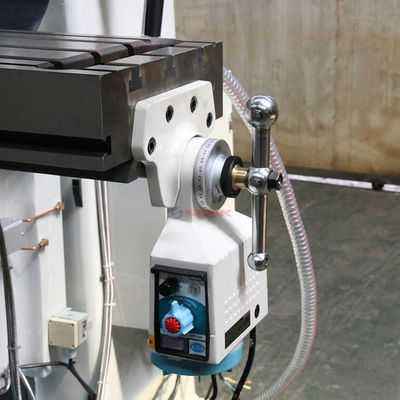

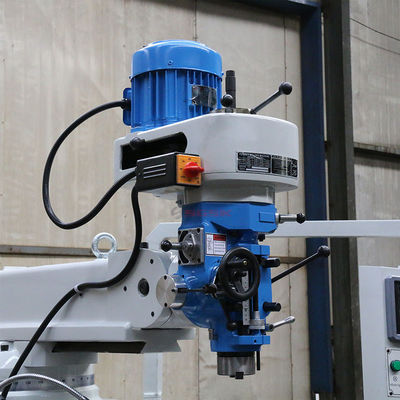

Details Images

Recommend Products

Company Profile

Certifications

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
