Turret milling machine head price of milling machine X6325 milling machine

Name: Turret milling machine head price of milling machine X6325 milling machine
Brand: SGSK
SKU: X6325
Price: 4 USD
Availability: InStock
Rating: 4.6 (199 reviews)

Large Image : Turret milling machine head price of milling machine X6325 milling machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Model Number:	X6325

Payment & Shipping Terms:

Price:	$4,350.00/Sets 1-9 Sets
Packaging Details:	Machine Model: Veetical milling equipment price of milling machine x6325 milling machine<br>Package: 1550x1650x2250mm, <br>Machine Weight: 1650kgs
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	780 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	400 Mm
Table Travel (Z) (mm):	400 Mm	Spindle Taper:	R8 Optional: ISO30/ISO40
Range Of Spindle Speed(r.p.m):	65 - 4500 R.p.m	Condition:	New
Table Travel (mm):	1270x254mm	Type:	Universal
Spindle Motor Power(kW):	2.2	Voltage:	220v
Dimension(LWH):	1516x1550x2080mm	Weight (KG):	1400
Warranty:	13 Months	Key Selling Points:	Competitive Price
Applicable Industries:	Garment Shops, Machinery Repair Shops, Manufacturing Plant, Factory	Showroom Location:	Indonesia, Russia, None
Marketing Type:	Hot Product 2019	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	13 Months
Core Components:	Bearing, Pump, Gear, Engine, Gearbox	Machine Name:	Turret Milling Machine Head Price X6325 Milling Machine
T- Slot Number And Size:	3x16mm	X/Y/Z Axis Travel:	780/400/500mm
Arm Stroke:	470mm	Spindle Nose To Table Distance:	405mm
Spindle Speed:	50HZ:65-4500 60HZ:80-5440	Spindle Travel:	127mm
Head Rotation (left - Right ):	90°	Head Rotation (front - Rear):	45°
Keyword:	Milling Machines	Port:	Any Port In China

Turret milling machine head price of milling machine X6325 milling machine

Product Paramenters

The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..

Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Products Description

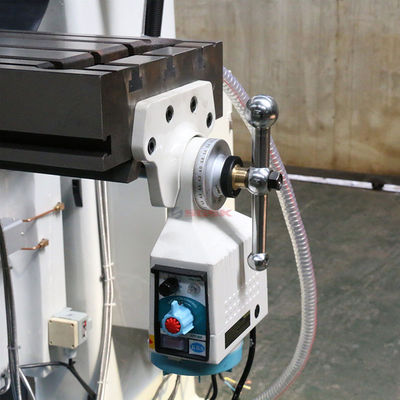

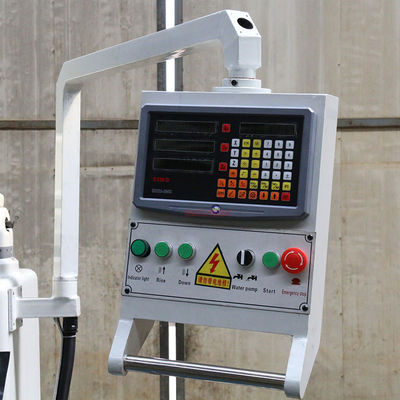

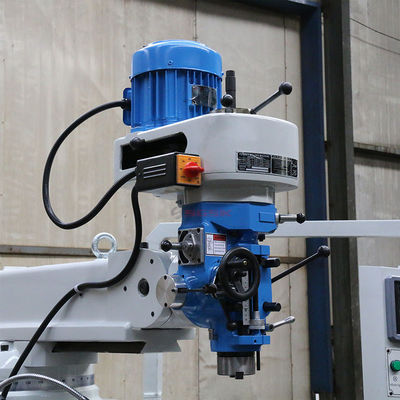

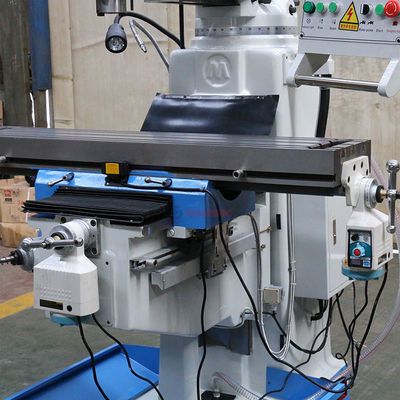

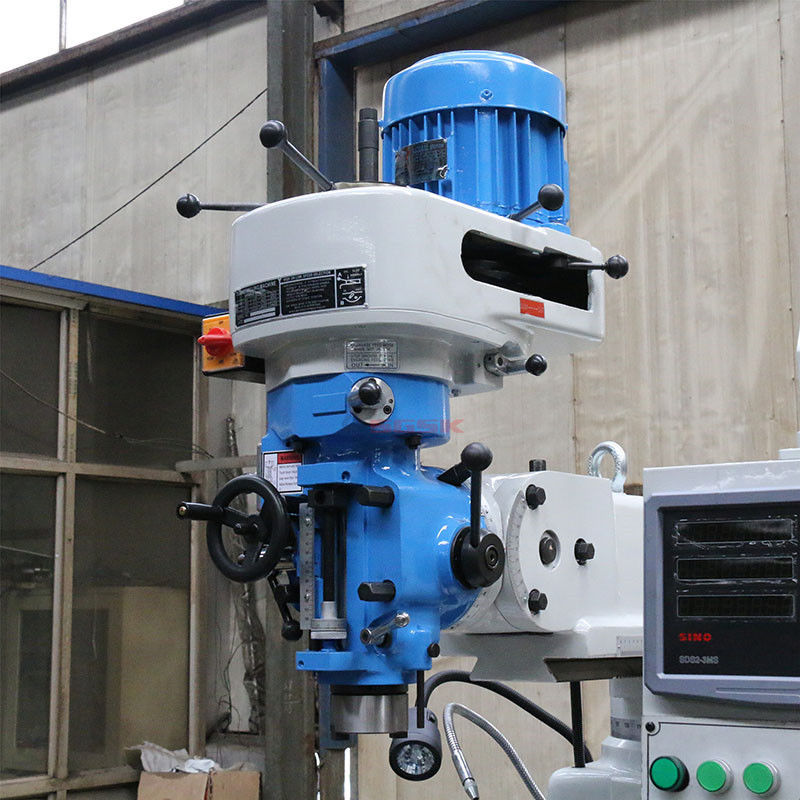

Details Images

Specifications	Units	X6325
Table size	mm	1270x254(10”x50”)
Table travel	mm	780/400/400
T slot(number-width-pitch)	mm	3-16-50
Spindle taper		standard:R8 Optional:ISO40
Spindle speed range	rpm	standard:16 steps 50HZ:65-4500 60HZ:80-5440
Spindle speed range			optional(variable)65-4000
Spindle travel	mm	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface	mm	90-510
Distance between spindle axis and table surface	mm	-
Main motor power	kw	2.2
Head rotation (left - right )	°	±90°
Head rotation (front - rear)	°	±45°
Weight	kg	1400
Overall dimension	mm	1550x1650x2250
