Aluminium Turret milling machine 4HW turret milling machine

Large Image : Aluminium Turret milling machine 4HW turret milling machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Model Number:	4HW

Payment & Shipping Terms:

Price:	$5,390.00/Sets 1-9 Sets
Packaging Details:	Machine model: Aluminium Turret milling machine 4HW turret milling machine<br>Package: polywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	780 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	400 Mm
Table Travel (Z) (mm):	500 Mm	Spindle Taper:	R8/ISO40
Range Of Spindle Speed(r.p.m):	80 - 5440 R.p.m	Condition:	New
Table Travel (mm):	780/400/500	Type:	VERTICAL
Voltage:	380V 440V 220V	Dimension(LWH):	1516x1550x2080/1566x1650x2080
Weight (KG):	1750	Warranty:	13 Monthes
Key Selling Points:	Competitive Price	Applicable Industries:	Manufacturing Plant, Factory
Showroom Location:	None	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	13 Months	Core Components:	Motor
Product Name:	Aluminium Turret Milling Machine 4HW Turret Milling Machine	Table Size:	1370x305mm
T- Slot Number And Size:	3x16	X Axis Travel:	810mm
Y Axis Travel:	420mm	Z Axis Travel:	500mm
Taper Of Spindle Hole:	Standard:R8 Optional: ISO30/ISO40	Spindle Travel:	127mm
Head Rotation (left - Right ):	90 Degree	Milling Head Rotary Angle(L/R):	±90°
Port:	Qingdao Port

Aluminium Turret milling machine 4HW milling machine conventional

Product Paramenters

Features:

1. M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4. Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

Products Description

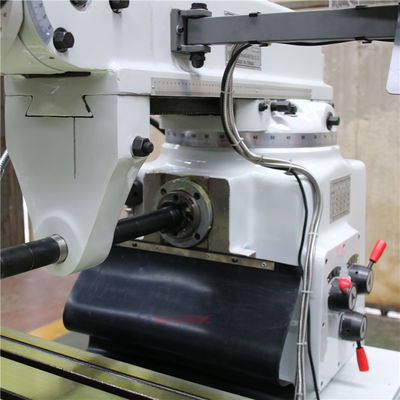

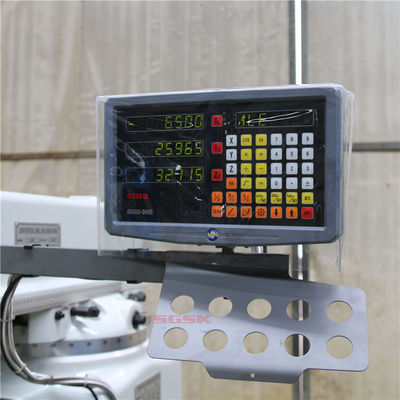

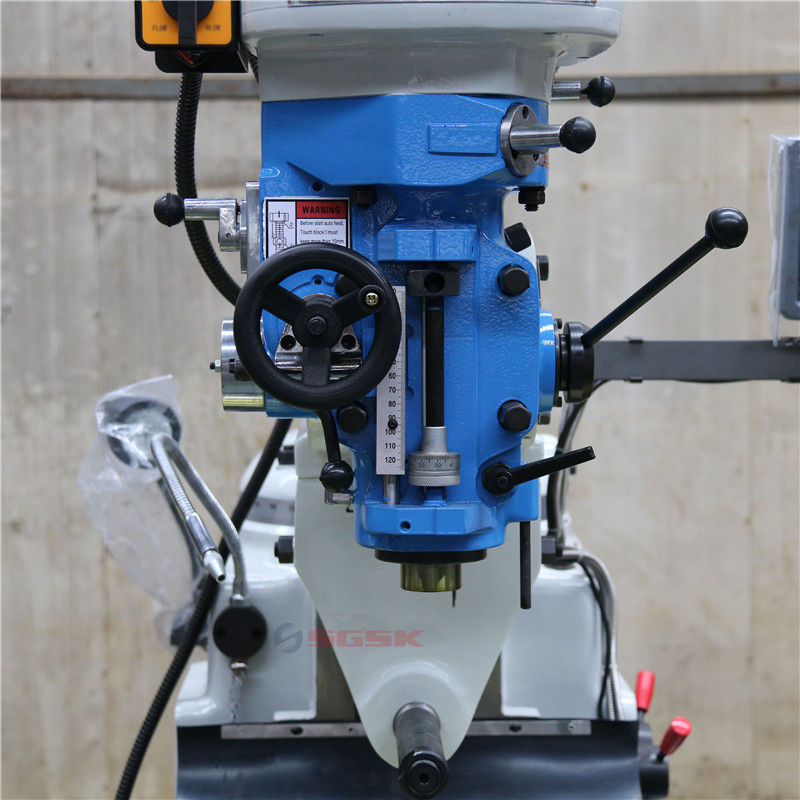

Details Images

Product main technical specifications:

Specifications	Units	4HW	5HW
Size of working table	mm	1270x254	1370x305
Table T slot number / widh /space	mm	3x16	3x16
Working table stroke(X.Y.Z)	mm	780/400/500	810/420/500
Distance spindle surface	mm	500	500
Horizontal spindle to table top	mm	0-300	0-300
Spindle Travel	mm	127	127
Milling head Rotary angle(L/R)	°	±90	±90
Milling head Rotary angle(F/B)	°	±45	±45
Spindle speed range	r/min	Vertical 80-5440(16rank) horizontal 45-1350(12rank)	Vertical 80-5440(16rank) horizontal 45-1350(12 rank)
Taper of spindle hole		Vertical R8/ISO40	Vertical R8/ISO40
Taper of spindle hole				Horizontal ISO40	Horizontal ISO40
Spindle sleeve automatic feed	mm/r	0.04/0.08/0.15	0.04/0.08/0.15
Horizontal spindle center to the cantilever plane distance	mm	185	185
Main motor power	KW	Vertical 2.2	Vertical 2.2
Main motor power	KW			Horizontal 3	Horizontal 3
Appearance size	mm	1516x1550x2080	1566x1650x2080
Gross Weight	Kg	1750	1850

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
