Table Travel (X) (mm): | 125 | Number Of Axes: | 3 |
---|---|---|---|
Machining Capacity: | Heavy Duty | Table Travel (Y) (mm): | 780 |
Table Travel (Z) (mm): | 400 | Spindle Taper: | R8 |
Range Of Spindle Speed(r.p.m): | 1 - 4500 R.p.m | Condition: | New |
Table Travel (mm): | 400*230*380 | Type: | Universal |
Spindle Motor Power(kW): | 2.2 | Voltage: | 380V/220V 50Hz |
Dimension(L*W*H): | 1550x1650x2250MM | Weight (KG): | 1750 |
Warranty: | 13 Months | Key Selling Points: | High-accuracy |
Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works | Showroom Location: | Indonesia, Mexico, Russia |
Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

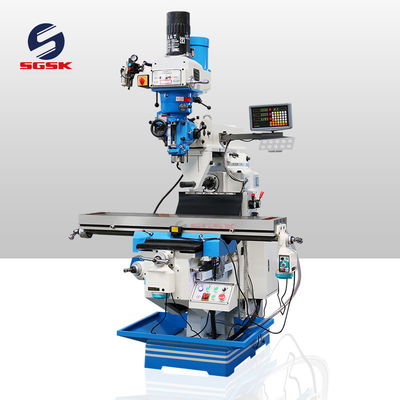

Core Components: | Motor | Name: | Vertical Horizontal Universal Milling Machine Turret Milling Machine |
Table Size: | 1270x254mm | Table Travel: | 780/380/400mm |
Spindle Speed Range: | 65-4500 | Spindle Travel: | 127mm |
Height Of Tool Bar Section: | 40x40mm | Spindle Axis To Table Surface Distance: | 0-400mm |
Head Rotation (left - Right ): | ±90° | Head Rotation (front - Rear): | ±45° |
Key Word: | Torreta Miling Machine | After Warranty Service: | Video Technical Support, Online Support |
Local Service Location: | Indonesia, Mexico, Russia | Port: | Qingdao Or Any Port In China |
Specifications
|
Units
|
4HW
|
5HW
|
Table size
|
mm
|
1270x254
|
1370x305
|
Table travel
|
mm
|
780/380/400
|
810/380/400
|
T slot(number-width-pitch)
|
mm
|
3-16-65
|
3-16-65
|
Spindle taper
|
|
(V) R8/ISO40
(H) ISO40 |
(V) R8/ISO40
(H) ISO40 |
Spindle speed range
|
rpm
|
(V) 50HZ:65-4500 60HZ:80-5440 (16 steps)
(H) 45-1350(12steps) |
|
|
|
Optional(variable)65-4000
|
|
Spindle travel
|
mm
|
127
|
127
|
Spindle feed range
|
mm
|
0.04,0.08,0.15
(3 steps) |
0.04,0.08,0.15
(3 steps) |
Distance between spindle axis and table surface
|
mm
|
0-400
|
0-400
|
Main motor power
|
kw
|
2.2(V)3(H)
|
2.2(V)3(H)
|
Head rotation (left - right )
|
°
|
±90°
|
±90°
|
Head rotation (front - rear)
|
°
|
±45°
|
±45°
|
Weight
|
kg
|
1750
|
1850
|
Overall dimension
|
mm
|
1550x1650x2250
|
1550x1650x2250
|
