Milling machine conventional X713 Bed type milling machine

Name: Milling machine conventional X713 Bed type milling machine
Brand: SGSK
SKU: X713
Price: 8 USD
Availability: InStock
Rating: 4.6 (150 reviews)

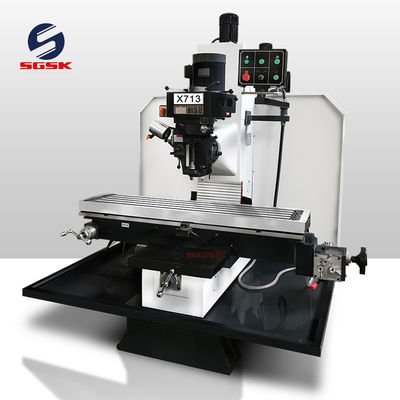

Large Image : Milling machine conventional X713 Bed type milling machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Certification:	CE ISO9001
Model Number:	X713

Payment & Shipping Terms:

Price:	$8,690.00/Sets 1-4 Sets
Packaging Details:	Machine model:Milling machine conventional X713 Bed-type milling machine<br>Package:one machine with one plywood case and steel set below
Supply Ability:	100 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	1050 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	470 Mm
Table Travel (Z) (mm):	500 Mm	Spindle Taper:	ISO40
Range Of Spindle Speed(r.p.m):	70 - 3620 R.p.m	Condition:	New
Table Travel (mm):	1525*320mm	Type:	Universal, Bed-type Milling Machine
Spindle Motor Power(kW):	5HP	Voltage:	220/380/415v
Dimension(LWH):	2565x2045x2290mm	Weight (KG):	2300
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Factory	Showroom Location:	None
Marketing Type:	Hot Product 2019	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, Engine, Gearbox	Name:	Milling Machine Conventional X713 Bed Type Milling Machine
Table Size:	1525*320mm	Spindle Speed Range:	70-3620mm
Spindle Quill Travel:	127mm	Table Stroke:	1050*470mm
Distance From Spindle Nose To Table:	70-570mm	Spindle Motor Power:	5HP KW
Machine Weight:	2300kg	Dis From Spindle To Column Guide Way:	450mm
After-sales Service Provided:	Online Support, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	Indonesia, Russia, None	Port:	Qingdao Or Any Port In China

Milling machine conventional X713 Bed type milling machine

The main performance characteristics:
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Milling head can be rotated 30 degrees,
Import frequency conversion and frequency conversion technology to make the spindle more convenient

Products Description

Details Display

Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Product main technical parameters:

Specifications	Unit	X713
Table size	mm	1525x320
Table stroke	mm	1050x470
T-type slot numbers / width /space	mm	3-14-80
Distance from spindle axis to column guide way	mm	450
Distance from spindle nose to table surface	mm	70-570
Spindle taper		ISO40
Spindle quill travel	mm	127
Spindle speed range	rpm	70-3620
Spindle motor power	KW	5HP
Overall dimensions	mm	2565x2045x2290
Machine weight	Kg	2300

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
