Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 1050 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Table Travel (Y) (mm): | 470 |
| Table Travel (Z) (mm): | None | Spindle Taper: | ISO40 |
| Range Of Spindle Speed(r.p.m): | 70 - 3620 R.p.m | Condition: | New |
| Table Travel (mm): | 1050x470 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 5 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 2565x2045x2290 | Weight (KG): | 2300 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

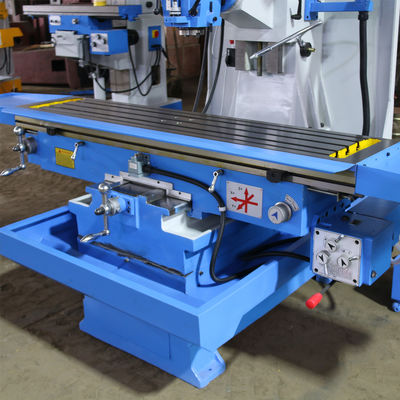

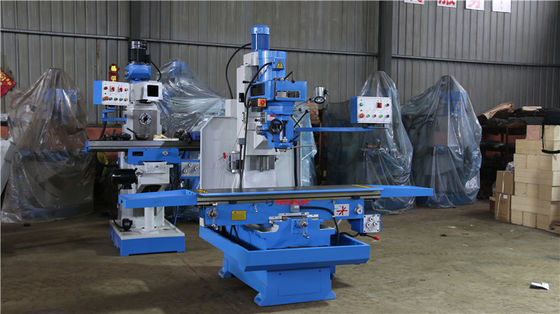

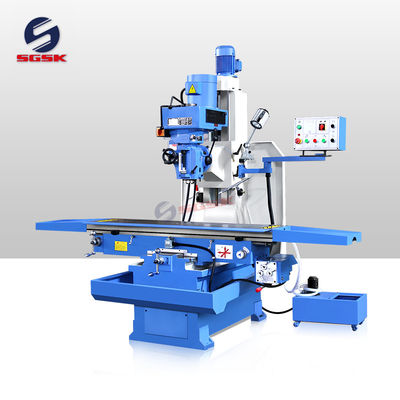

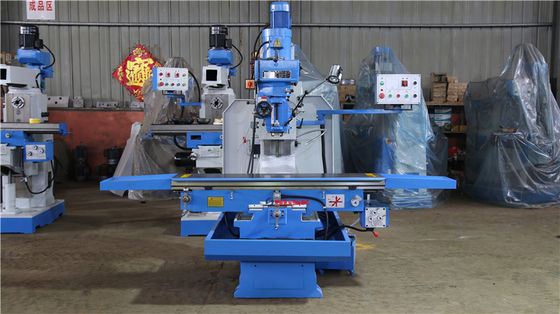

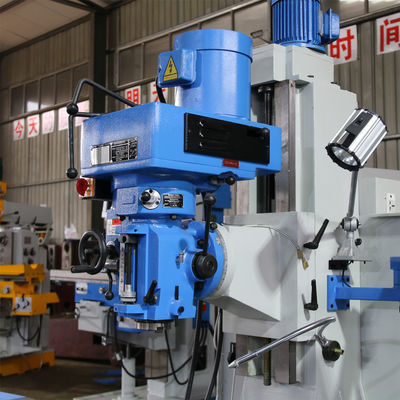

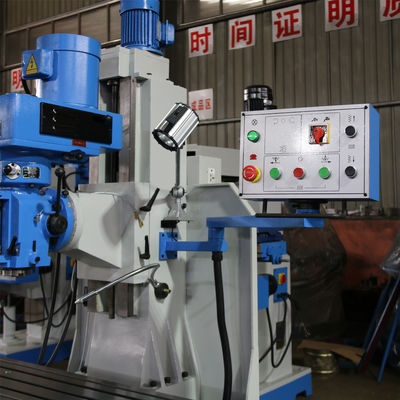

| Core Components: | Motor | Name: | Milling Machine X713 Bed Type Milling Machine Small Milling |
| Function: | Metal Milling | Color: | Blue-white |
| Table Size: | 1525x320 | Spindle Speed: | 70-3620 |
| Table Travel: | 1050x47 | Motor: | 5 |
| Brand: | SGSK | T-slot: | 3-14*80 |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
|
X713
|
|
Table size
|
mm
|
1525x320
|
|
Table stroke
|
mm
|
1050x470
|
|
T-type slot numbers / width /space
|
mm
|
3-14-80
|
|
Distance from spindle axis to column guide way
|
mm
|
450
|
|
Distance from spindle nose to table surface
|
mm
|
70-570
|
|
Spindle taper
|
|
ISO40
|
|
Spindle quill travel
|
mm
|
127
|
|
Spindle speed range
|
rpm
|
70-3620
|
|
Spindle motor power
|
KW
|
5HP
|
|
Overall dimensions
|
mm
|
2565x2045x2290
|
|
Machine weight
|
Kg
|
2300
|
