Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 800 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Table Travel (Y) (mm): | 400 |
| Table Travel (Z) (mm): | None | Spindle Taper: | ISO50 |
| Range Of Spindle Speed(r.p.m): | 18 - 1800 R.p.m | Condition: | New |
| Table Travel (mm): | 800x400 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 7.5 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 2290x1840x2120 | Weight (KG): | 3860 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

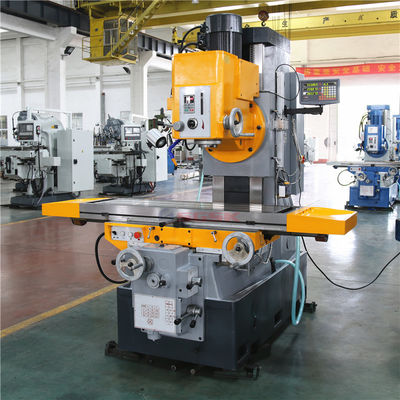

| Core Components: | Motor | Name: | Heavy Metal XA7140 Bed Type Milling Machine Hobby |
| Function: | Metal Milling | Color: | YELLOW |
| Table Size: | 1400x400 | Precision: | High Precision |
| Table Travel: | 800x400 | Brand: | SGSK |
| Motor: | 7.5 | Spindle Speed: | 18-1800 |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
XA7140
|
|
Table size
|
mm
|
1400x400
|
|
Table stroke
|
mm
|
800x400
|
|
T-type slot numbers / width /space
|
mm
|
3-18-100
|
|
Max. load working table
|
kg
|
800
|
|
Distance from spindle axis to column guide way
|
mm
|
520
|
|
Distance from spindle nose to table surface
|
mm
|
150-650
|
|
Spindle taper
|
|
ISO50
|
|
Spindle quill travel
|
mm
|
105
|
|
Spindle speed range
|
rpm
|
18-1800
|
|
Spindle motor power
|
KW
|
7.5
|
|
Overall dimensions
|
mm
|
2290x1840x2080
|
|
Machine weight
|
Kg
|
3860
|
