Bed milling machine X715 universal milling machine pdf

Name: Bed milling machine X715 universal milling machine pdf
Brand: SGSK
SKU: X715
Price: 39 USD
Availability: InStock
Rating: 5 (103 reviews)

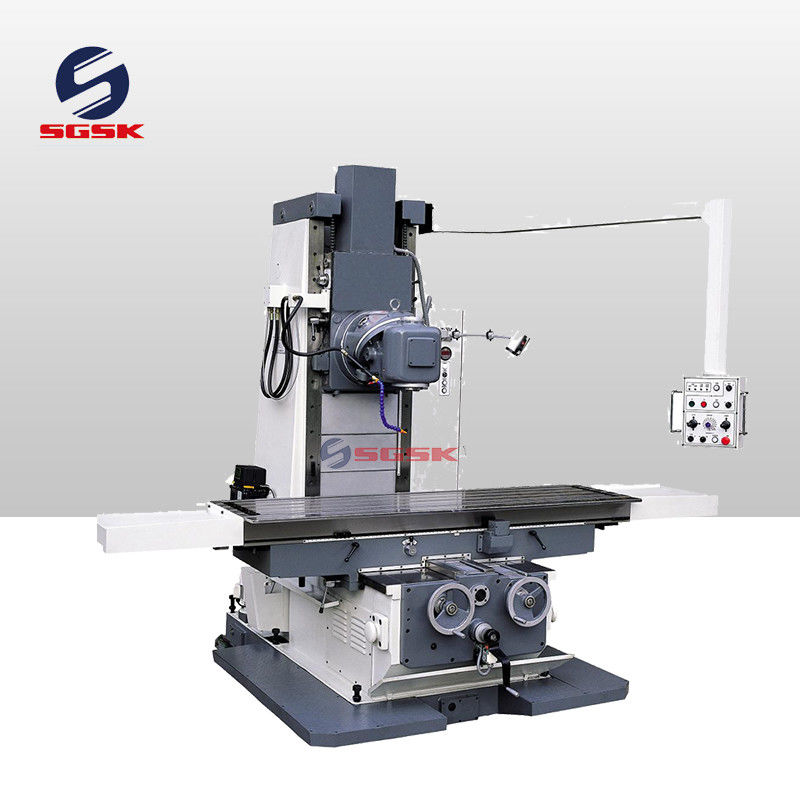

Large Image : Bed milling machine X715 universal milling machine pdf

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Certification:	CE ISO9001
Model Number:	X715

Payment & Shipping Terms:

Price:	$39,260.00/Sets 1-1 Sets
Packaging Details:	Machine model:Bed milling machine X715 universal milling machine pdf<br>Package:one machine with one plywood case and steel set below
Supply Ability:	100 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	1500 Mm	Number Of Axes:	3
Machining Capacity:	Heavy Duty	Table Travel (Y) (mm):	670 Mm
Table Travel (Z) (mm):	670 Mm	Spindle Taper:	ISO50
Range Of Spindle Speed(r.p.m):	35 - 1345 R.p.m	Condition:	New
Table Travel (mm):	2100*500mm	Type:	Universal, Bed-type Milling Machine
Spindle Motor Power(kW):	7.5	Voltage:	220/380/415v
Dimension(LWH):	330023802750mm	Weight (KG):	7300
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Manufacturing Plant, Factory	Showroom Location:	None
Marketing Type:	New Product 2019	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, Engine, Gearbox	Name:	Bed Milling Machine X715 Universal Milling Machine Pdf
Table Size:	2100*500mm	Spindle Speed:	35-1345mm
Max. Load Working Table:	2000kg	Feed Speed:	20-1800mm/min
Spindle Axis To Column Guide Way:	610mm	Spindle Motor Power:	7 .5KW
T-type Slot Numbers / Width /space:	4-20--100	Machine Weight:	7300kg
After-sales Service Provided:	Online Support, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	None	Port:	Qingdao Or Any Port In China

Bed milling machine X715 universal milling machine pdf

The main performance characteristics:
X715 have advanced design, high bearing capacity, processing range wide, good rigidity, strong stability, vertical and horizontal milling can easily switch, convenient operation, to adapt to the in the ultra precision machining of large type parts.

Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

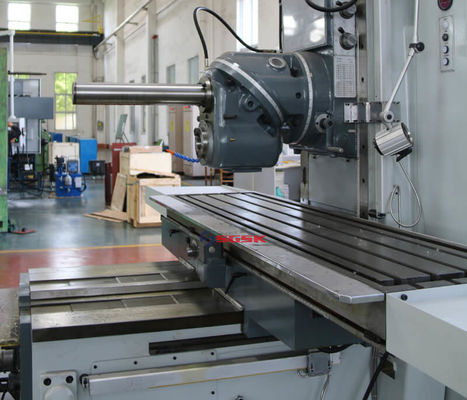

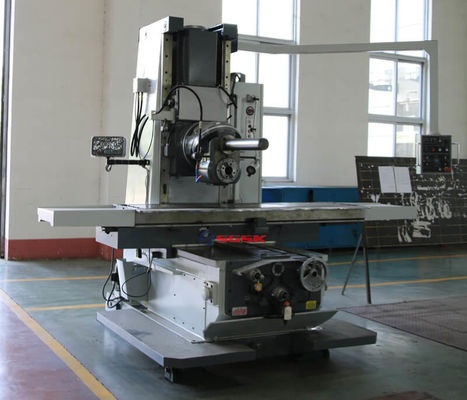

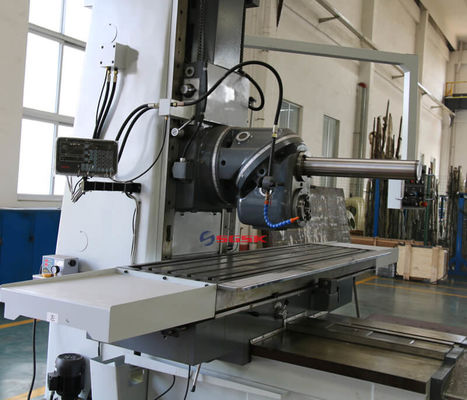

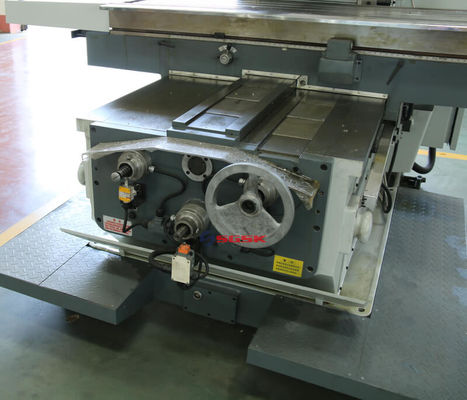

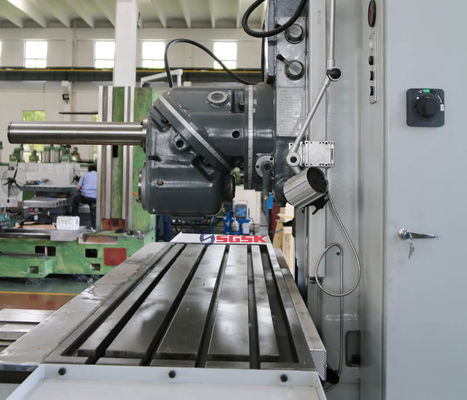

Details Display

Product main technical Specifications:

Specifications	Units	X715
Table size	mm	2100x500
Table stroke(X.Y)	mm	1500x670
Vertical travel of headstock	mm	0-670
T-type slot numbers / width /space	mm	4-20--100
Max. load working table	KG	2000
Feed speed	mm/min	20-1800
Rapid feed speed	mm/min	3500
Spindle speed range	rpm	35-1345
Spindle speed step	steps	12
Spindle taper		ISO50
Distance from spindle axis to column guide way	mm	610
Spindle motor power	KW	7.5
Overall dimensions	mm	3300x2380x2750
Machine weight	KG	7300

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
