Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 1500 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Table Travel (Y) (mm): | 500 |
| Table Travel (Z) (mm): | None | Spindle Taper: | ISO50 |
| Range Of Spindle Speed(r.p.m): | 66 - 1440 R.p.m | Condition: | New |
| Table Travel (mm): | SGSK | Type: | VERTICAL |
| Spindle Motor Power(kW): | 7.5 | Voltage: | 220V, 380V, 410V |
| Dimension(L*W*H): | 3000x2285x2340 | Weight (KG): | 5000 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Colombia, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

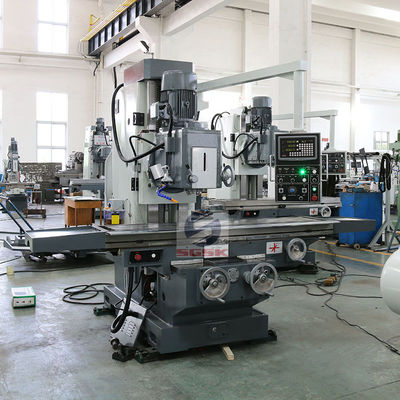

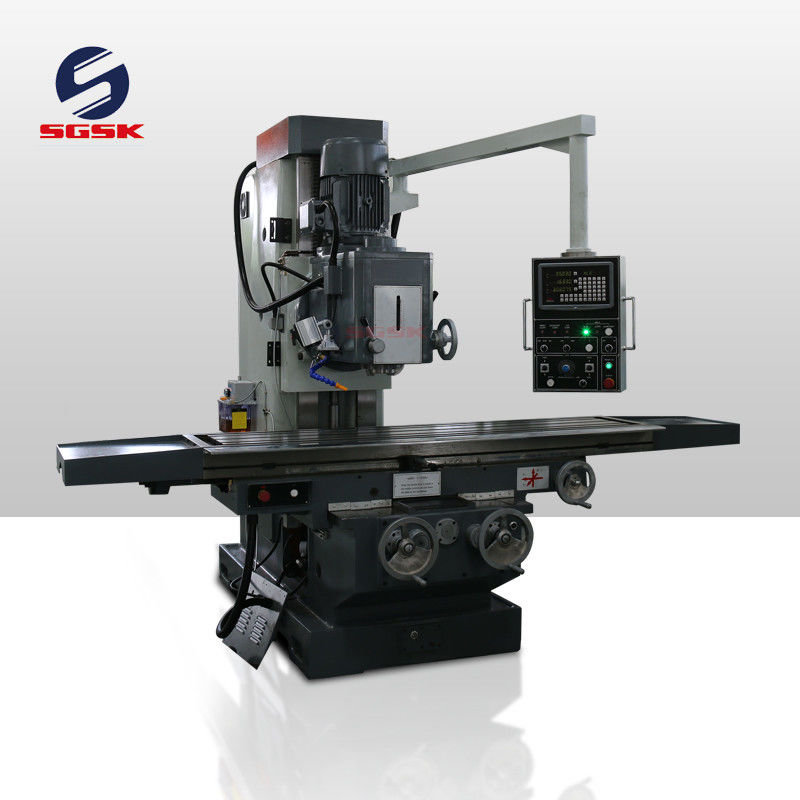

| Core Components: | Motor | Name: | Professional Bed Type Aluminum Milling Machine XA7150 |
| Function: | Metal Milling | Color: | Grey |
| Table Size: | 2000x400 | Table Travel: | 1500x500 |
| Spindle Speed: | 66-1440 | Brand: | SGSK |
| Main Motor: | 7.5 | T-Slot: | 3-18*100 |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
XA7150
|
|
Table size
|
mm
|
2000x400
|
|
Table stroke(X.Y)
|
mm
|
1500x550
|
|
Vertical travel of headstock
|
mm
|
100-650
|
|
T-type slot numbers / width /space
|
mm
|
3-18-100
|
|
Max. load working table
|
KG
|
2000
|
|
Feed speed
|
mm/min
|
20-2000
|
|
Rapid feed speed (X,Y)
|
mm/min
|
3100
|
|
Spindle speed range
|
rpm
|
66-1440
|
|
Spindle speed step
|
steps
|
12
|
|
Spindle taper
|
|
ISO50
|
|
Milling head rotary motion
|
|
+/-30°
|
|
Stroke of the sleeve
|
mm
|
105
|
|
Distance from spindle axis to column guide way
|
mm
|
600
|
|
Spindle motor power
|
KW
|
6.5/8
|
|
Overall dimensions
|
mm
|
3000x2285x2340
|
|
Machine weight
|
KG
|
4500
|
