Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 780 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 400 |
| Table Travel (Z) (mm): | 400 | Spindle Taper: | R8/ISO40 |
| Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m | Condition: | New |
| Table Travel (mm): | 780x400x400 | Type: | Universal |
| Spindle Motor Power(kW): | 2.2 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 1550x1650x2250 | Weight (KG): | 1750 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Colombia, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

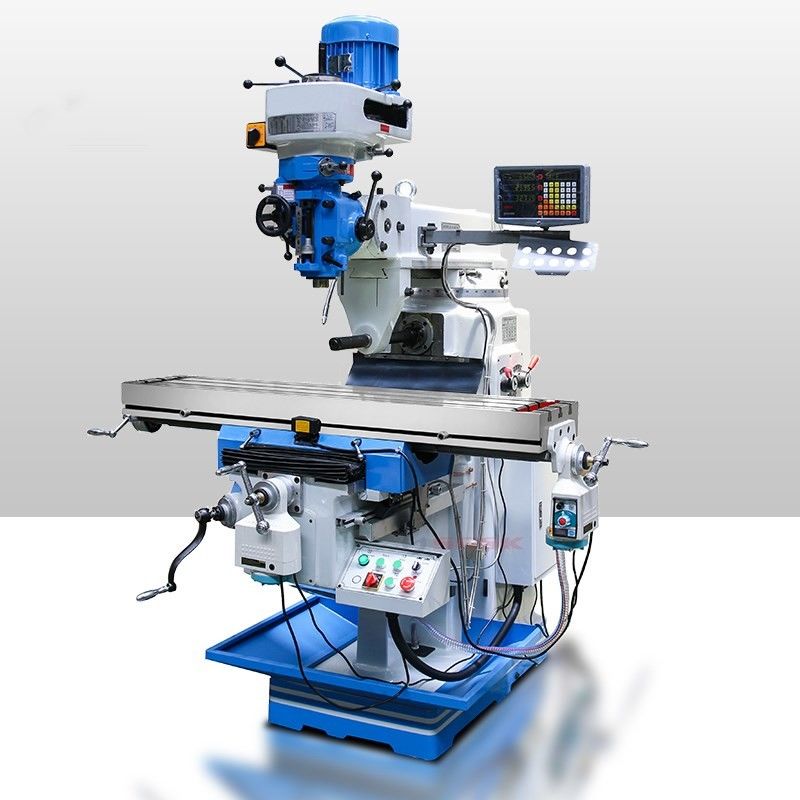

| Core Components: | Motor | Name: | Variable Speed 4 Axis 4HW Turret Milling Machine |
| Machine Type: | Veritcal | Function: | Metal Milling |
| Color: | Customer Request | Table Size: | 1270X254mm |
| Precision: | High Precision | Spindle Speed: | 65-4500/80-5440 Rpm |
| Spindle Travel: | 127mm | Main Motor: | 2.2 Kw |
| Brand: | SGSK | Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
4HW
|
5HW
|
|
|
Table size
|
mm
|
1270x254
|
1370x305
|
|
|
Table travel
|
mm
|
780/380/400
|
810/380/400
|
|
|
T slot(number-width-pitch)
|
mm
|
3-16-65
|
3-16-65
|
|
|
Spindle taper
|
|
(V) R8/ISO40
(H) ISO40 |
(V) R8/ISO40
(H) ISO40 |
|
|
Spindle speed range
|
rpm
|
(V) 50HZ:65-4500 60HZ:80-5440 (16 steps)
(H) 45-1350(12steps) |
|
|
|
|
|
Optional(variable)65-4000
|
|
|
|
Spindle travel
|
mm
|
127
|
127
|
|
|
Spindle feed range
|
mm
|
0.04,0.08,0.15
(3 steps) |
0.04,0.08,0.15
(3 steps) |
|
|
Distance between spindle axis and table surface
|
mm
|
0-400
|
0-400
|
|
|
Main motor power
|
kw
|
2.2(V)3(H)
|
2.2(V)3(H)
|
|
|
Head rotation (left - right )
|
°
|
±90°
|
±90°
|
|
|
Head rotation (front - rear)
|
°
|
±45°
|
±45°
|
|
|
Weight
|
kg
|
1750
|
1850
|
|
|
Overall dimension
|
mm
|
1550x1650x2250
|
1550x1650x2250
|
|
