5HW China Tool Turret Milling Machine New Condition

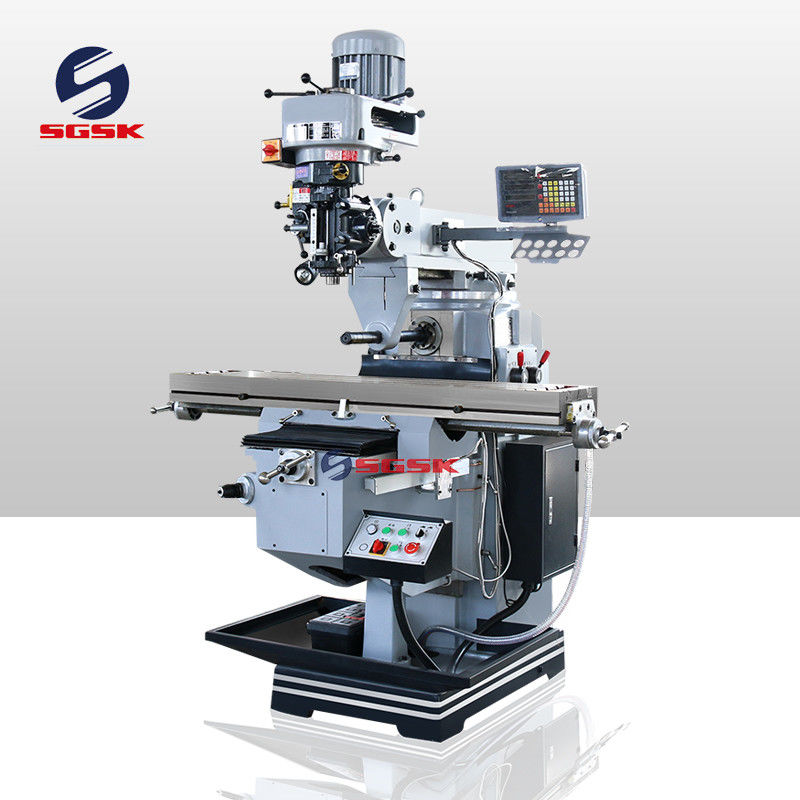

Large Image : 5HW China Tool Turret Milling Machine New Condition

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Model Number:	5HW

Payment & Shipping Terms:

Price:	$5,890.00/Sets 1-4 Sets
Packaging Details:	Name: China tool milling machine 5HW Turret milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	810	Number Of Axes:	3
Machining Capacity:	Light Duty	Table Travel (Y) (mm):	400
Table Travel (Z) (mm):	400	Spindle Taper:	R8/ISO40
Range Of Spindle Speed(r.p.m):	65 - 4500 R.p.m	Condition:	New
Table Travel (mm):	810x400x400mm	Type:	Universal
Spindle Motor Power(kW):	2.2	Voltage:	220v, 380v, 410v
Dimension(LWH):	1551x1650x2250mm	Weight (KG):	1850
Warranty:	13 Months	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant	Showroom Location:	Chile, Colombia, Indonesia
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor	Name:	China Tool Milling Machine 5HW Turret Milling Machine
Color:	Customer Request	Keyword:	China Milling Tool Milling Machine
Model:	5HW	Precision:	High Precision
Spindle Travel:	810x400x400	Spindle Speed:	65-4500/80-5440 Rpm
Main Motor Power:	2.2	T-slots(number width pitch ):	3-16*65
Brand:	SGSK	Port:	Qingdao Or Any Port In China

China tool milling machine 5HW Turret milling machine

Click here to send inquire

Product Paramenters

Features:

The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline,
etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

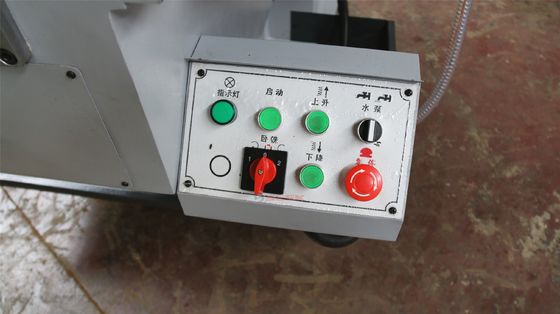

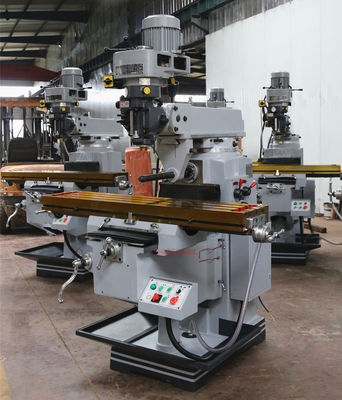

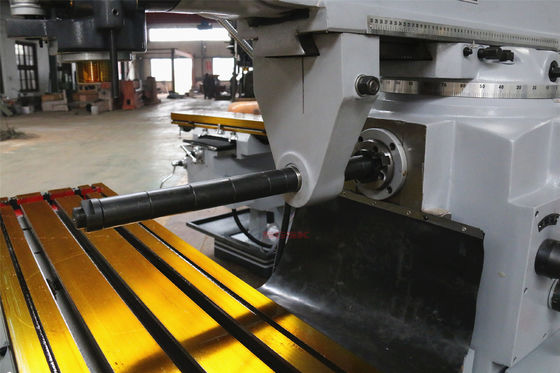

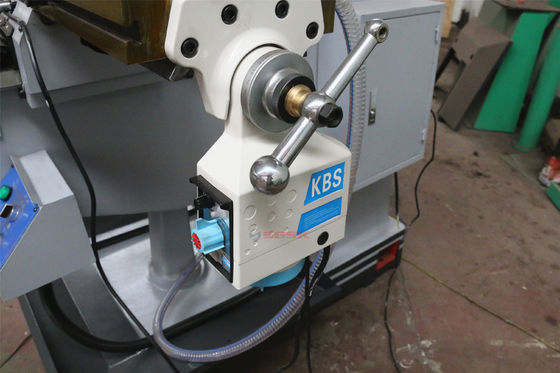

Details Images

Product main technical specifications:

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/380/400	810/380/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V) 50HZ:65-4500 60HZ:80-5440 (16 steps) (H) 45-1350(12steps)
		Optional(variable)65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250
