CE Standard Horizontal Gear Milling Machine Universal Manual Mills X6132 Knee-Type Milling Machine

Large Image : CE Standard Horizontal Gear Milling Machine Universal Manual Mills X6132 Knee-Type Milling Machine

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE
Model Number:	X6132 X6132B X6132BH

Payment & Shipping Terms:

Price:	$12,900.00/Sets 1-9 Sets
Packaging Details:	Name: CE standard horizontal gear milling machine universal manual mills X6132 knee-type milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month CE universal manual mills X6132 knee-type milling machine

Contact Now

Detailed Product Description

Table Travel (X) (mm):	700 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	255 Mm
Table Travel (Z) (mm):	320 Mm	Spindle Taper:	ISO50 7:24
Range Of Spindle Speed(r.p.m):	30 - 1500 R.p.m	Condition:	New
Type:	Horizontal	Spindle Motor Power(kW):	7.5klw
Voltage:	220v 380v 415v	Dimension(LWH):	230017701700mm
Weight (KG):	2700	Warranty:	1 Year
Key Selling Points:	Competitive Price	Applicable Industries:	Manufacturing Plant, Factory
Showroom Location:	Indonesia, Russia	Marketing Type:	Hot Product 2019
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Name:	CE Gear Universal Manual Mills Knee-type Milling Machine	Table Size:	320*1325mm
Longitudinal Travel (manual/auto):	700/680mm	Transverse Travel(manual/auto):	255/240mm
Vertical Travel (manual/auto):	320/300mm	Spindle Speed Range:	30-1500rpm (18 Steps)
Main Motor Power:	7.5kw	Swivel Angle Of Table:	45
N.W./G.W.:	2700/3000kg	Overall Dimension:	230017701700mm
After-sales Service Provided:	Online Support, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	Indonesia, Russia	Port:	Qingdao Or Any Port In China

CE standard horizontal gear milling machine universal manual mills X6132 knee-type milling machine

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation

Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

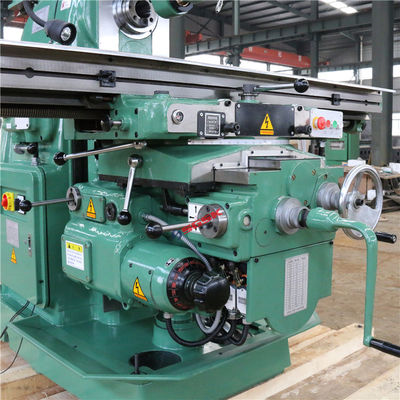

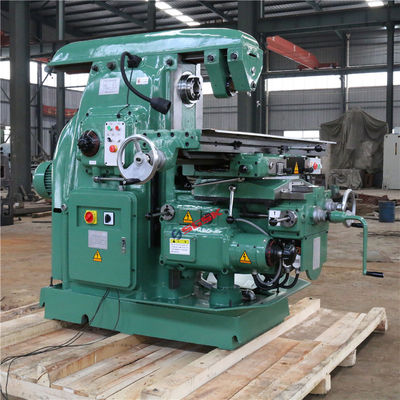

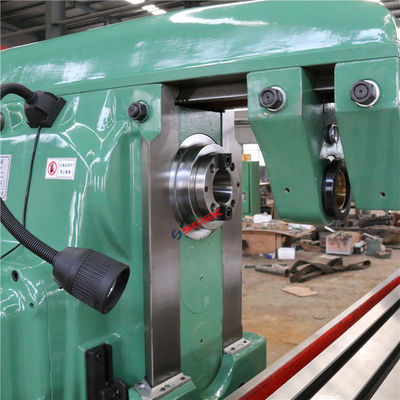

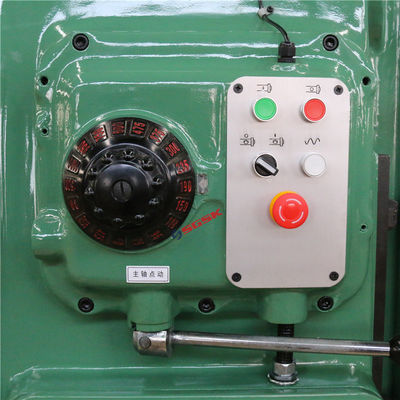

Details Display

Product main technical parameters:

Specifications	Units	X6132	X6132B	X6132BH
Table size	mm	1325x320	1600x320	1600x320
Table load	kg	500	500	500
T slot(number-width-pitch)	mm	3-18-70	3-18-70	3-18-70
Table travel	mm	700/680 255/240 320/300	900/880 255/240 320/300	900/880 255/240 410/390
Range of table feed	mm /min	XY:23.5-1180 Z:8-394	XY:23.5-1180 Z:8-394	XY:23.5-1180 Z:8-394
Rapid speed of table	mm /min	XY:2300 Z:770	XY:2300 Z:770	XY:2300 Z:770
Spindle taper		ISO50 7:24	ISO50 7:24	ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)	30-1500 (18 steps)	30-1500 (18 steps)
Swivel angle of table	°	±45	±45	±45
Distance between spindle axis and table surface	mm	30-350	30-350	30-440
Spindle motor power	kw	7.5	7.5	7.5
Feed motor power	kw	1.5	1.5	1.5
Weight	kg	2700/3000	2800/3100	2900/3200
Overall dimension	mm	2300×1770×1700	2600×1770×1700	2600×1770×1900
