Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 900 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 255 |
| Table Travel (Z) (mm): | 410 | Spindle Taper: | ISO50, Iso50 |
| Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m | Condition: | New |
| Table Travel (mm): | 900x255x410 | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 2600*1770*1900 | Weight (KG): | 2900 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Colombia, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Name: | End Milling Machine X6132BH Milling Machine For Sale China Milling |
| Function: | Metal Milling | Table Size: | 1600*320 |
| Color: | Green | Precision: | High Precision |
| Brand: | SGSK | Motor: | 7.5 |
| T-slots(number *width *pitch ): | 3/18/70mm | Spindle Speed: | 30-1500rpm |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X6132
|
X6132B
|
X6132BH
|
|
Table size
|
mm
|
1325x320
|
1600x320
|
1600x320
|
|
Table load
|
kg
|
500
|
500
|
500
|
|

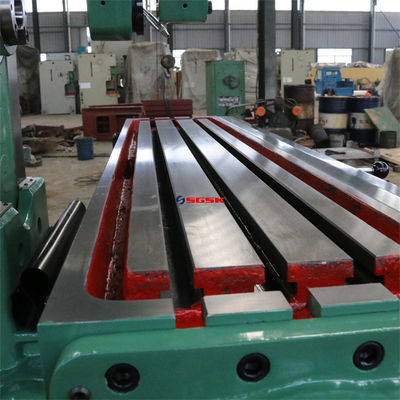

T slot(number-width-pitch)
|
mm
|
3-18-70
|
3-18-70
|
3-18-70
|
|
Table travel
|
mm
|
700/680
255/240 320/300 |
900/880
255/240 320/300 |
900/880
255/240 410/390 |
|
Range of table feed
|
mm /min
|
XY:23.5-1180
Z:8-394 |
XY:23.5-1180
Z:8-394 |
XY:23.5-1180
Z:8-394 |
|
Rapid speed of table
|
mm /min
|
XY:2300
Z:770 |
XY:2300
Z:770 |
XY:2300
Z:770 |
|
Spindle taper
|
|
ISO50 7:24
|
ISO50 7:24
|
ISO50 7:24
|
|
Spindle speed range
|
rpm
|
30-1500 (18 steps)
|
30-1500 (18 steps)
|
30-1500 (18 steps)
|
|
Swivel angle of table
|
°
|
±45
|
±45
|
±45
|
|
Distance between spindle axis and table surface
|
mm
|
30-350
|
30-350
|
30-440
|
|
Spindle motor power
|
kw
|
7.5
|
7.5
|
7.5
|
|
Feed motor power
|
kw
|
1.5
|
1.5
|
1.5
|
|
Weight
|
kg
|
2700/3000
|
2800/3100
|
2900/3200
|
|
Overall dimension
|
mm
|
2300×1770×1700
|
2600×1770×1700
|
2600×1770×1900
|
