Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 680 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 280 |
| Table Travel (Z) (mm): | 400 | Spindle Taper: | ISO40 |
| Range Of Spindle Speed(r.p.m): | 40 - 1300 R.p.m | Condition: | New |
| Table Travel (mm): | 680*280*400 | Type: | Horizontal |
| Spindle Motor Power(kW): | 3 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 1725*1450*1750 | Weight (KG): | 1300 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Colombia, Brazil, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

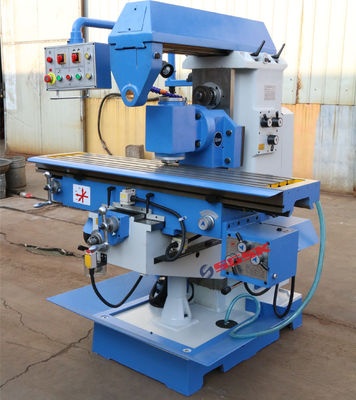

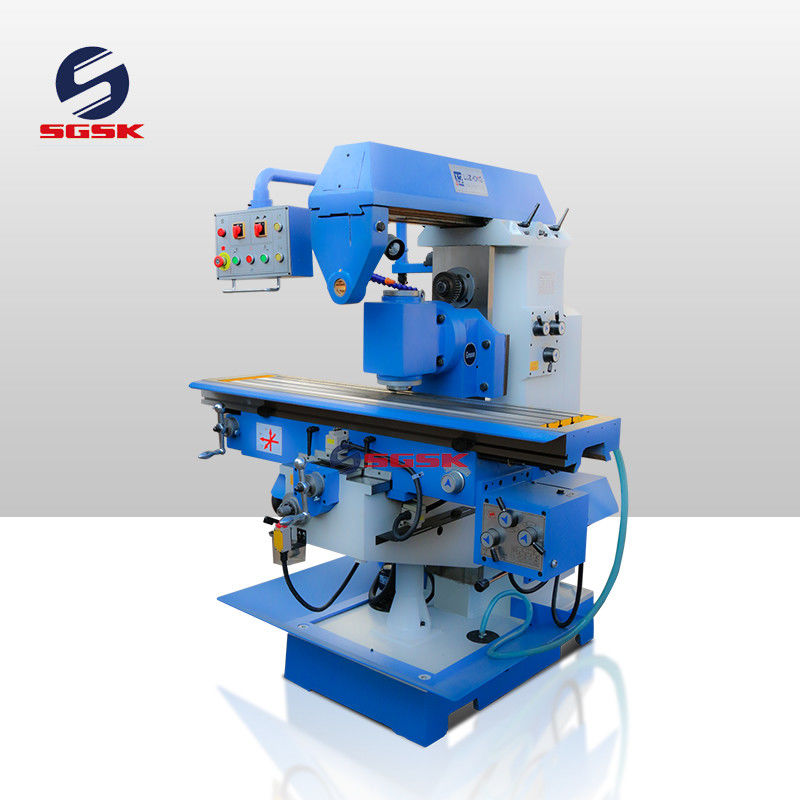

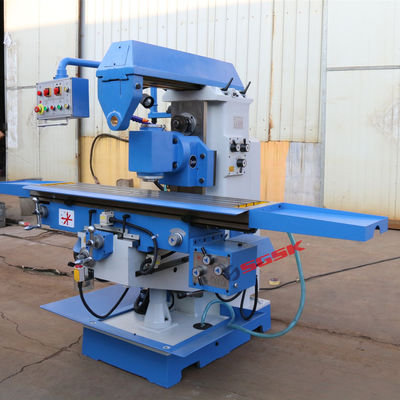

| Core Components: | Motor | Name: | Horizontal Milling Machine X6128 Machines Milling Mesin Milling |
| Function: | Metal Milling | Color: | White-blue |
| Precision: | High Precision | Table Travel: | 680x280x400 |
| Spindle Speed: | 40-1300 | Table Size: | 1200*280 |
| Brand: | SGSK | T-slots(number *width *pitch ): | 3-14*50 |
| Motor: | 3 | Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X6032
|
X6128
|
|
Table size
|
mm
|
1500x320
|
1200x280
|
|
Table travel
|
mm
|
1000/300/400
|
680/280/400
|
|
T slot(number-width-pitch)
|
mm
|
3/16/70
|
3/14/50
|
|
Spindle taper
|
|
ISO40 7:24
|
ISO40 7:24
|
|
Spindle speed range
|
rpm
|
40-1300(12)
|
40-1300(12)
|
|
Distance between spindle axis and table surface
|
mm
|
0-400
|
0-400
|
|
Main motor power
|
kw
|
3
|
3
|
|
Weight
|
kg
|
2050
|
1300
|
|
Overall dimension
|
mm
|
2070x1900x1850
|
1725x1450x1750
|
