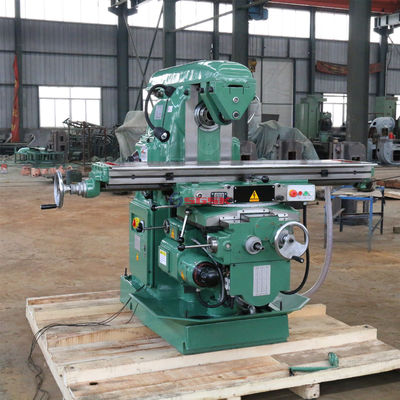

X6132B Knee Type Milling Machine Horizontal Medium Duty

Name: X6132B Knee Type Milling Machine Horizontal Medium Duty
Brand: SGSK
SKU: X6132B
Price: 13 USD
Availability: InStock
Rating: 4.6 (110 reviews)

Large Image : X6132B Knee Type Milling Machine Horizontal Medium Duty

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Certification:	CE
Model Number:	X6132B

Payment & Shipping Terms:

Price:	$13,980.00/Sets 1-2 Sets
Packaging Details:	Name:Horizontal milling machine X6132B knee type milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	900	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	255 Mm
Table Travel (Z) (mm):	320 Mm	Spindle Taper:	ISO50 7:24
Range Of Spindle Speed(r.p.m):	30 - 1500 R.p.m	Condition:	New
Table Travel (mm):	900/880 255/240 320/300mm	Type:	Horizontal
Spindle Motor Power(kW):	7.5klw	Voltage:	220v 380v 415v
Dimension(LWH):	2600x1770x1700mm	Weight (KG):	2800
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Factory	Showroom Location:	None
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, Engine, Gearbox	Name:	Horizontal Milling Machine X6132B Knee Type Milling Machine
Table Size:	1600x320mm	Table Load:	500kg

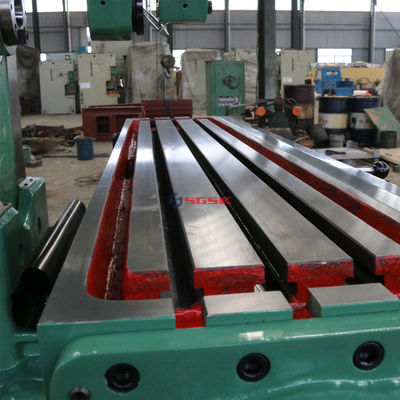

T Slot(number-width-pitch):	3-18-70	Table Travel:	900/880 255/240 320/300mm

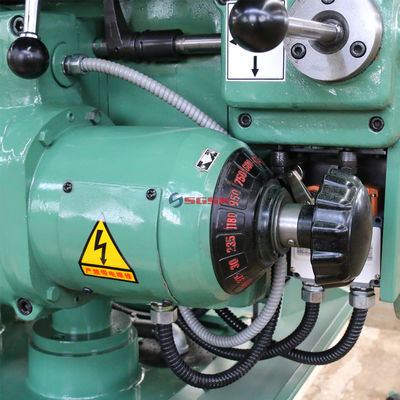

Range Of Table Feed:	XY:23.5-1180 Z:8-394mm /min	Rapid Speed Of Table:	XY:2300 Z:770mm /min
Spindle Speed Range:	30-1500 (18 Steps)rpm	Swivel Angle Of Table:	±45
After-sales Service Provided:	Online Support, Video Technical Support	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	Indonesia, Russia	Port:	Qingdao Or Any Port In China

Iron milling machine X6132B knee type milling machine

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation

Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Products Description

Details Display

Product main technical parameters:

Specifications	Units	X6132	X6132B	X6132BH
Table size	mm	1325x320	1600x320	1600x320
Table load	kg	500	500	500
T slot(number-width-pitch)	mm	3-18-70	3-18-70	3-18-70
Table travel	mm	700/680 255/240 320/300	900/880 255/240 320/300	900/880 255/240 410/390
Range of table feed	mm /min	XY:23.5-1180 Z:8-394	XY:23.5-1180 Z:8-394	XY:23.5-1180 Z:8-394
Rapid speed of table	mm /min	XY:2300 Z:770	XY:2300 Z:770	XY:2300 Z:770

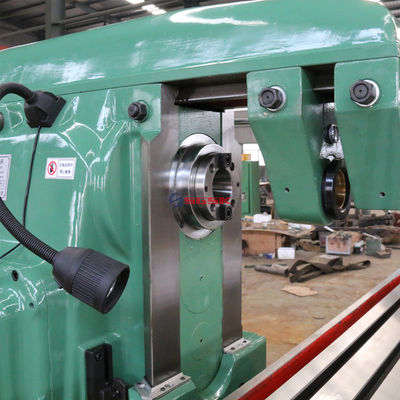

Spindle taper		ISO50 7:24	ISO50 7:24	ISO50 7:24

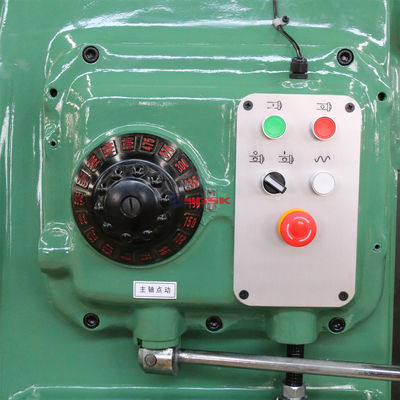

Spindle speed range	rpm	30-1500 (18 steps)	30-1500 (18 steps)	30-1500 (18 steps)
Swivel angle of table	°	±45	±45	±45
Distance between spindle axis and table surface	mm	30-350	30-350	30-440
Spindle motor power	kw	7.5	7.5	7.5
Feed motor power	kw	1.5	1.5	1.5
Weight	kg	2700/3000	2800/3100	2900/3200
Overall dimension	mm	2300×1770×1700	2600×1770×1700	2600×1770×1900

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
