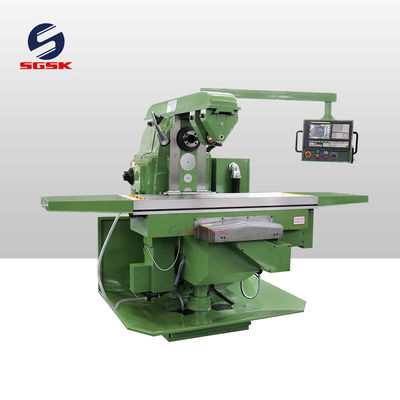

Cnc XK6040 horizontal keyway milling machine Competitive Price

Name: Cnc XK6040 horizontal keyway milling machine Competitive Price
Brand: SGSK
SKU: xk6040
Price: 26 USD
Availability: InStock
Rating: 4.5 (197 reviews)

Large Image : Cnc XK6040 horizontal keyway milling machine Competitive Price

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Certification:	CE ISO9001
Model Number:	xk6040

Payment & Shipping Terms:

Price:	$26,980.00/Sets 1-2 Sets
Packaging Details:	Machine model:Cnc horizontal milling machine XK6040 horizontal keyway milling machine<br>Package:one machine with one plywood case and steel set below
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	920 Mm	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	380 Mm
Table Travel (Z) (mm):	350 Mm	Spindle Taper:	ISO50
Range Of Spindle Speed(r.p.m):	30 - 1500 R.p.m	Condition:	New
Table Travel (mm):	1500*360mm	Type:	Horizontal
Spindle Motor Power(kW):	11	Voltage:	220V/380V/415V
Dimension(LWH):	236017901860mm	Weight (KG):	2300
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Factory	Showroom Location:	None
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, Engine, Gearbox	Name:	XK6040 Horizontal Keyway Milling Machine
Table Size:	1700*400mm	Table Travel (X.Y.Z):	920380350mm
T-type Slot Numbers / Width /space:	3-18-90mm	Max. Load Working Table:	500kg
Distance From Spindle Axis To Table:	30-410mm	Rapid Feed Speed(X.Y.Z):	6000/3000/6000rpm
Spindle Taper:	ISO50(7:24)	Spindle Speed Range:	30-1500(18 Steps)
Max. Spindle Torque:	1000N.m	After-sales Service Provided:	Online Support, Video Technical Support
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	None
Port:	Qingdao Or Any Port Of China

Cnc horizontal milling machine XK6040 horizontal keyway milling machine

The main performance characteristics:
1.CNC horizontal lifting platform milling machine is good rigidity, can bear heavy load cutting work.
2, CNC horizontal type lifting platform milling machine with enough power and wide range of spindle speed. High speed cutting can be made by using hard alloy cutter, and the cutting efficiency can be fully played.
3, the spindle speed has impulse device, easy to change, the machine can quickly and effectively brake.
4, machine tool and important mechanical parts are manufactured from the alloy steel, easy to wear and tear of the parts are made of wear resistant material, Plastic guide rail , to ensure the machine has enough service life.
5.CNC horizontal lifting platform milling machine three motion are limiting device to ensure the safety of workers and machine tool, but also can be used as the multi machine tool management.
6, CNC horizontal lifting platform milling machine has a perfect lubrication system, Important transmission parts and bearings have perfect lubrication device,At the same time an set indicator for Conduct regular inspection
7, Good reliability, economical and practical, the price function than good
Application:
Horizontal lifting platform milling machine is available on a variety of cylindrical milling cutter, wafer type milling cutter,
angle cutter, molding cutter and milling processing of various plane, inclined plane, such as grooves.
If you use the appropriate milling machine accessories, processing gear, cam, an arc-shaped groove and a helical surface of special shape of parts,
Configuration universal milling head, circular table and indexing head and so on milling attachment,Can further expand the scope of the milling machine, this machine is applicable to all kinds of mechanical processing industry.

Products Description

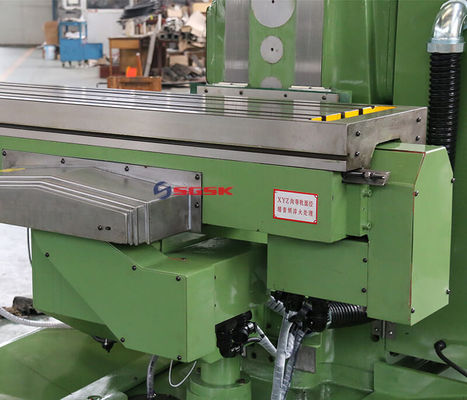

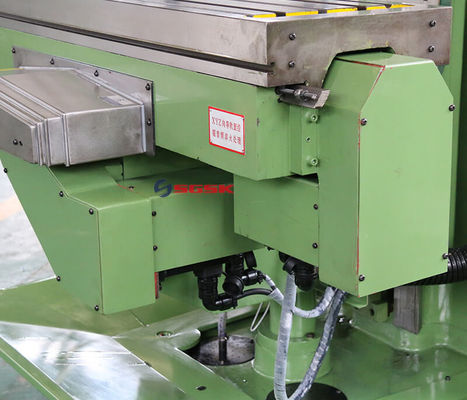

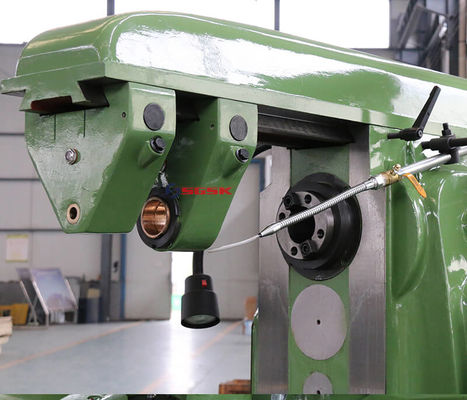

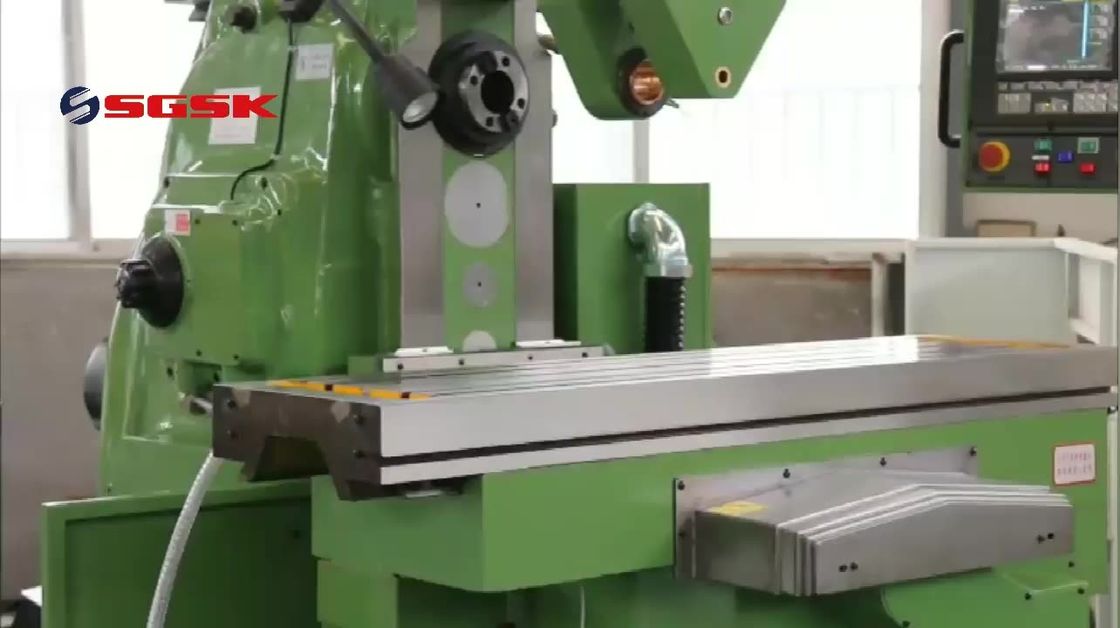

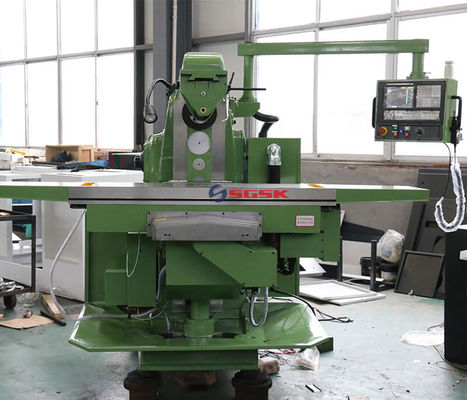

Details Display

Product main technical parameters:

Specifications	Units	XK6040
Table size	mm	1700x400
Table travel (X.Y.Z)	mm	920x380x350
T-type slot numbers / width /space	mm	3-18-90
Max. load working table	kg	500
Distance from spindle axis to table	mm	30-410
Distance from column vertical guide way to the center of table	mm	275-625
Rapid feed speed(X.Y.Z)	mm/min	6000/3000/6000
Feed speed (X.Y.Z)	mm/min	6-3200/3-1600/6-3200
Spindle taper		ISO50(7:24)
Spindle speed range	rpm	30-1500(18 steps)
Spindle motor power	KW	11
Longitudinal, transverse feed motor torque(X.Y)	N. m	12
Vertical feed motor torque (Z)	N. m	22
Max. spindle torque	N. m	1000
Overall dimensions(Lx W x H)	mm	2310x2200x2394
Machine weight	Kg	4250

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
