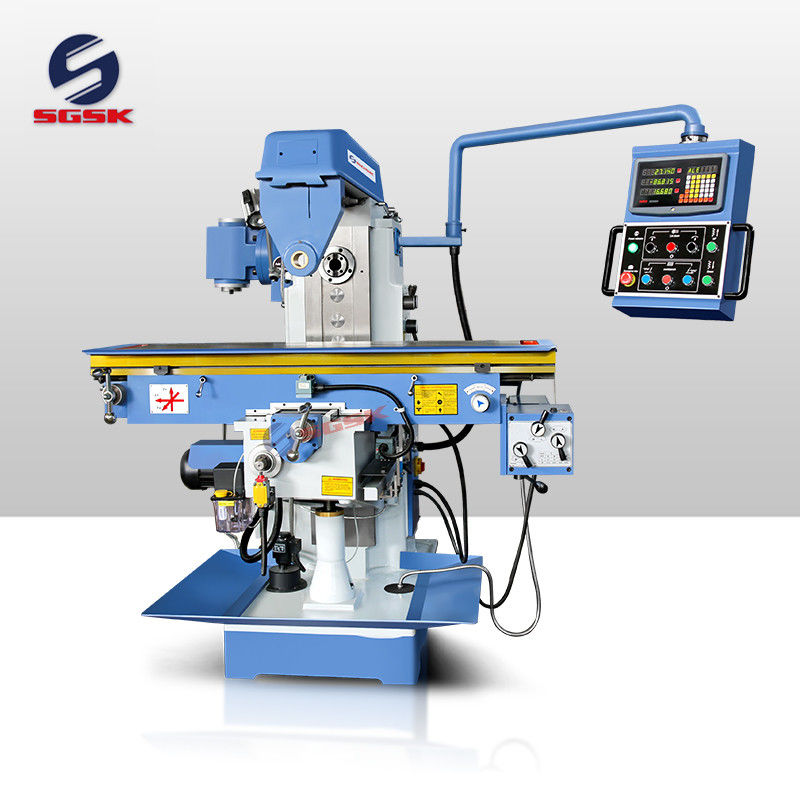

X6032B industrial Horizontal Milling Machine Light Duty

Name: X6032B industrial Horizontal Milling Machine Light Duty
Brand: SGSK
SKU: X6032
Price: 6 USD
Availability: InStock
Rating: 4.9 (107 reviews)

Large Image : X6032B industrial Horizontal Milling Machine Light Duty

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Model Number:	X6032

Payment & Shipping Terms:

Price:	$6,690.00/Sets 1-9 Sets
Packaging Details:	Name: milling machine X6032 milling machine equipment horizontal milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Table Travel (X) (mm):	1000	Number Of Axes:	3
Machining Capacity:	Light Duty	Table Travel (Y) (mm):	300
Table Travel (Z) (mm):	400	Spindle Taper:	ISO40
Range Of Spindle Speed(r.p.m):	40 - 1300 R.p.m	Condition:	New
Table Travel (mm):	1000x300x400	Type:	Horizontal
Spindle Motor Power(kW):	3	Voltage:	220v, 380v, 410v
Dimension(LWH):	2070x1900x1850	Weight (KG):	2050
Warranty:	13 Months	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant	Showroom Location:	Colombia, Brazil, Indonesia
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor	Name:	Milling Machines Made In China X6032B Industrial Milling Machine
Function:	Metal Milling	Color:	White-blue
Precision:	High Precision	Table Travel:	1000x300x400
Spindle Speed:	40-1300	Table Size:	1500x320
Brand:	SGSK	T-slots(number width pitch ):	3-16*70
Motor:	3	Port:	Qingdao Or Any Port In China

Milling machines made in china X6032B industrial milling machine

Products Description

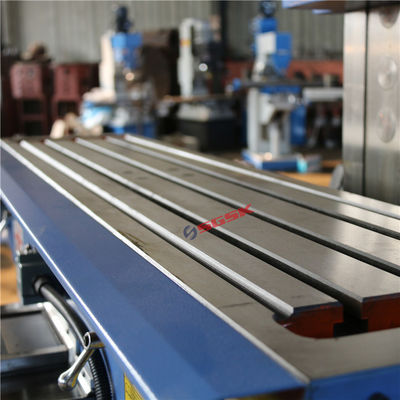

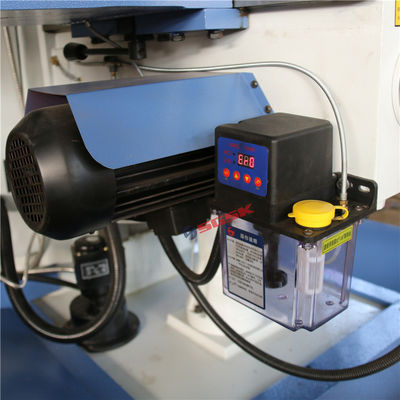

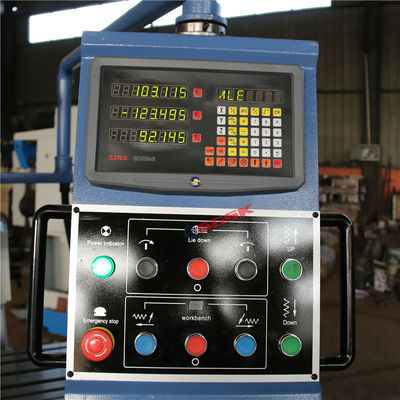

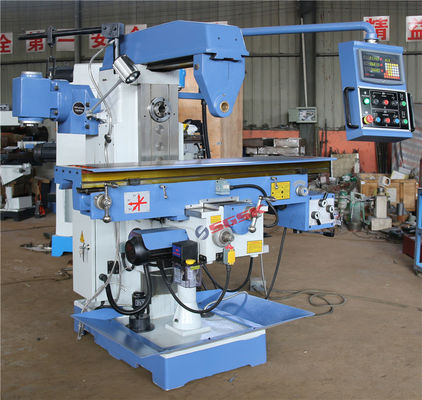

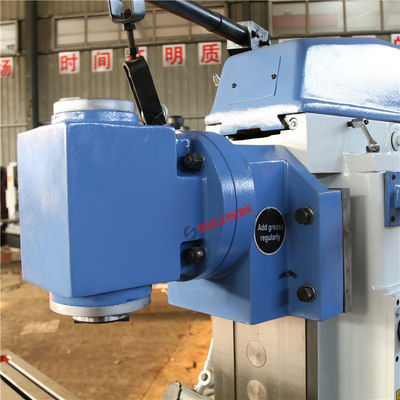

Details Images

Click here to send inquire

Product Paramenters

Product main technical specifications:

Specifications	Units	X6032B	X6128
Table size	mm	1500x320	1200x280
Table travel	mm	1000/300/400	680/280/400
T slot(number-width-pitch)	mm	3/16/70	3/14/50
Spindle taper		ISO40 7:24	ISO40 7:24
Spindle speed range	rpm	40-1300(12)	40-1300(12)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	3	3
Weight	kg	2050	1300
Overall dimension	mm	2070x1900x1850	1725x1450x1750
