Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 800 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 300 |
| Table Travel (Z) (mm): | 400 | Spindle Taper: | ISO50 |
| Range Of Spindle Speed(r.p.m): | 40 - 1300 R.p.m | Condition: | New |
| Table Travel (mm): | 800x300x400 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 4 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 2020x1800x2150mm | Weight (KG): | 2400 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

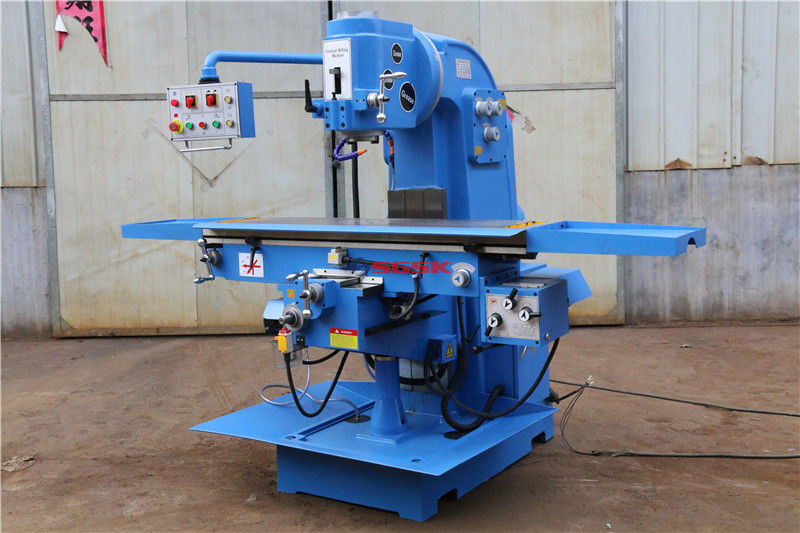

| Core Components: | Motor | Name: | Manual Small Milling X5032K Vertical Milling Machine |
| Function: | Metal Milling | Color: | Blue |
| Table Size: | 1500x320mm | Precision: | High Precision |
| Spindle Speed: | 50-400 | Table Travel: | 800x300x400 |
| Motor: | 4 | T-slots(number *width *pitch ): | 3-16*70 |
| Brand: | SGSK | Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X5032K
|
|
Table size
|
mm
|
1500x320
|
|
Table travel
|
mm
|
800/300/400
|
|
T slot(number-width-pitch)
|
mm
|
3-16-70
|
|
Spindle taper
|
|
ISO50 7:24
|
|
Spindle speed range
|
rpm
|
40-1300(12steps)
|
|
Distance between spindle nose and table surface
|
mm
|
50-400
|
|
Distance between spindle axis to column surface
|
mm
|
320
|
|
Main motor power
|
kw
|
4
|
|
Weight
|
kg
|
2400
|
|
Overall dimension
|
mm
|
2020x1800x2150
|
