Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 650 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 320 |
| Table Travel (Z) (mm): | 350 | Spindle Taper: | ISO40 |
| Range Of Spindle Speed(r.p.m): | 40 - 1300 R.p.m | Condition: | New |
| Table Travel (mm): | 650x320x350 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 3 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 1700x1700x1850 | Weight (KG): | 1500 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Colombia, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

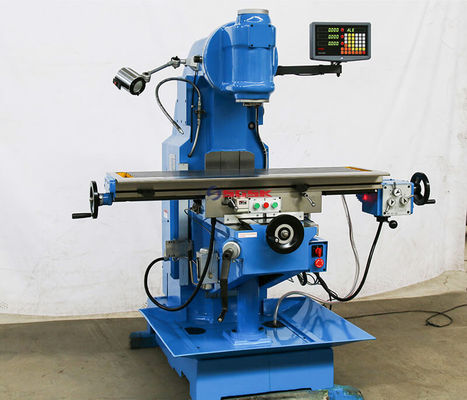

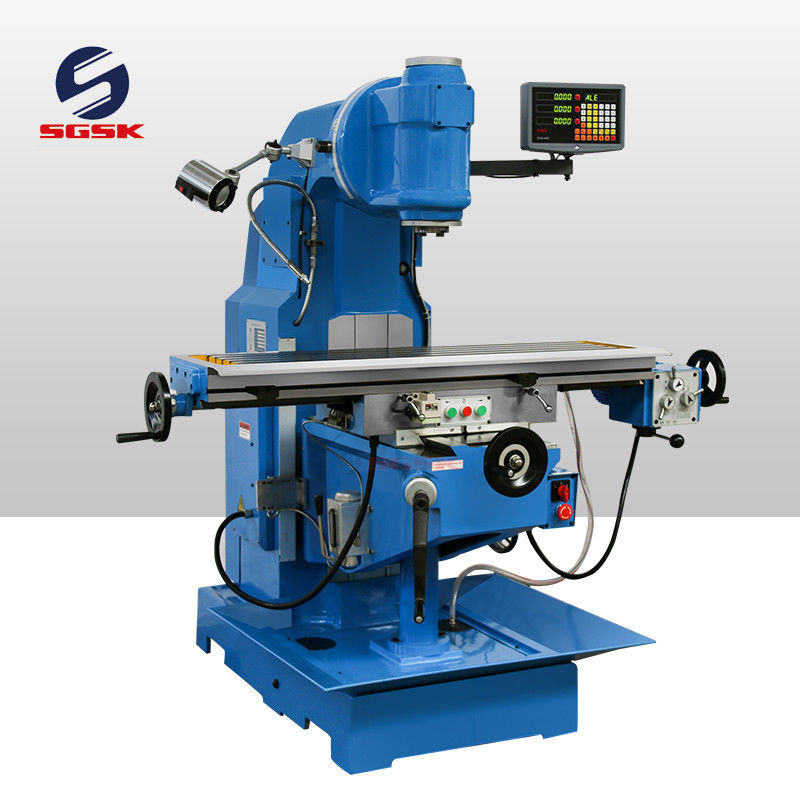

| Core Components: | Motor | Name: | Portal Vertical Metal Milling Machine X5028 |
| Function: | Metal Milling | Color: | Blue |

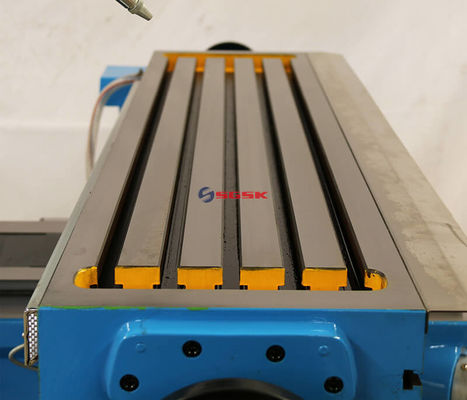

| Table Size: | 1200x280mm | Table Travel: | 650x320x350 |
| Spindle Speed: | 40-1300 | Brand: | SGSK |
| Main Motor: | 3 | T-slots(number *width *pitch ): | 3-14*50 |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X5028
|
|
Table size
|
mm
|
1200×280
|
|
Table travel
|
mm
|
650/320/350
|
|
T slot(number-width-pitch)
|
mm
|
3-14-50
|
|
Spindle taper
|
|
ISO40 7:24
|
|
Spindle speed range
|
rpm
|
40-1300(12steps)
|
|
Distance between spindle nose and table surface
|
mm
|
50-400
|
|
Distance between spindle axis to column surface
|
mm
|
320
|
|
Main motor power
|
kw
|
3
|
|
Weight
|
kg
|
1500
|
|
Overall dimension
|
mm
|
1700×1700×1850
|
