Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 900 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 315 |
| Table Travel (Z) (mm): | 385 | Spindle Taper: | ISO50, ISO50 |
| Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m | Condition: | New |
| Table Travel (mm): | 900x315x385 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 11 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 2560x2160x2300 | Weight (KG): | 4250 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Australia, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

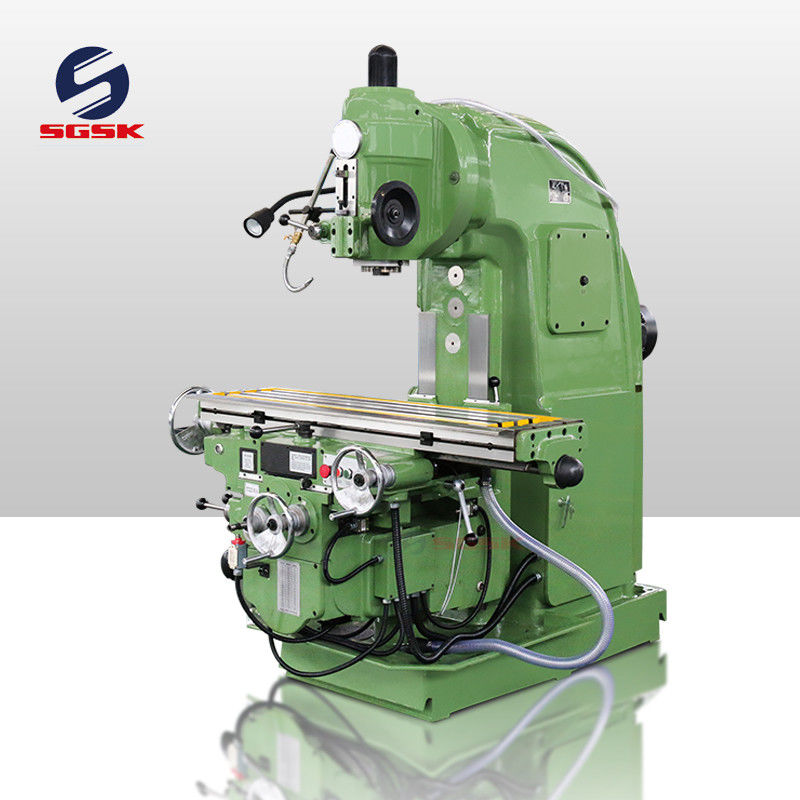

| Core Components: | Motor | Name: | Table Milling Machine X5040 China Vertical Milling Machine |
| Function: | Metal Milling | Table Size: | 1700x400mm |
| Spindle Speed: | 30-1500 | Precision: | High Precision |
| Color: | Green | Motor: | 11 |
| Brand: | SGSK | T-slots(number *width *pitch ): | 3-18*90 |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X5040
|
|
Table size
|
mm
|
1700x400
|
|
Table load
|
kg
|
800
|
|
T slot(number-width-pitch)
|
mm
|
3-18-90
|
|
Table travel
|
mm/min
|
900/880
315/300
385/365
|
|
Spindle taper
|
-
|
ISO50 7:24
|
|
Spindle speed range
|
rpm
|
30-1500(12steps)
|
|
Swivel angle of vertical milling head
|
°
|
±45
|
|
Distance between spindle nose and table surface
|
mm
|
130-515
|
|
Main motor power
|
kw
|
11
|
|
Feed motor power
|
kw
|
1.5
|
|
Weight
|
kg
|
4250/4500
|
|
Overall dimension
|
mm
|
2560x2160x2300
|
