Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 80 - 1250 R.p.m |
| CNC Or Not: | Normal | Voltage: | 220V, 380V, 410V |
| Dimension(L*W*H): | 1220*1350*1850 | Power (kW): | 1.5 |
| Weight (KG): | 1030 KG | Warranty: | 13 Months |
| Key Selling Points: | Competitive Price | Showroom Location: | Brazil, Peru, Chile |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |

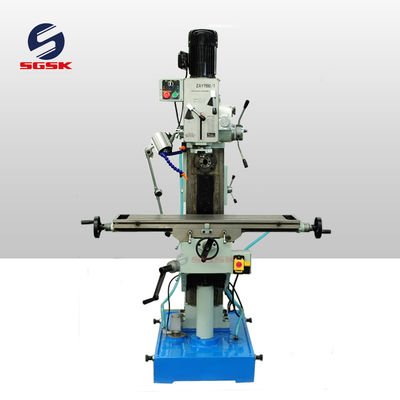

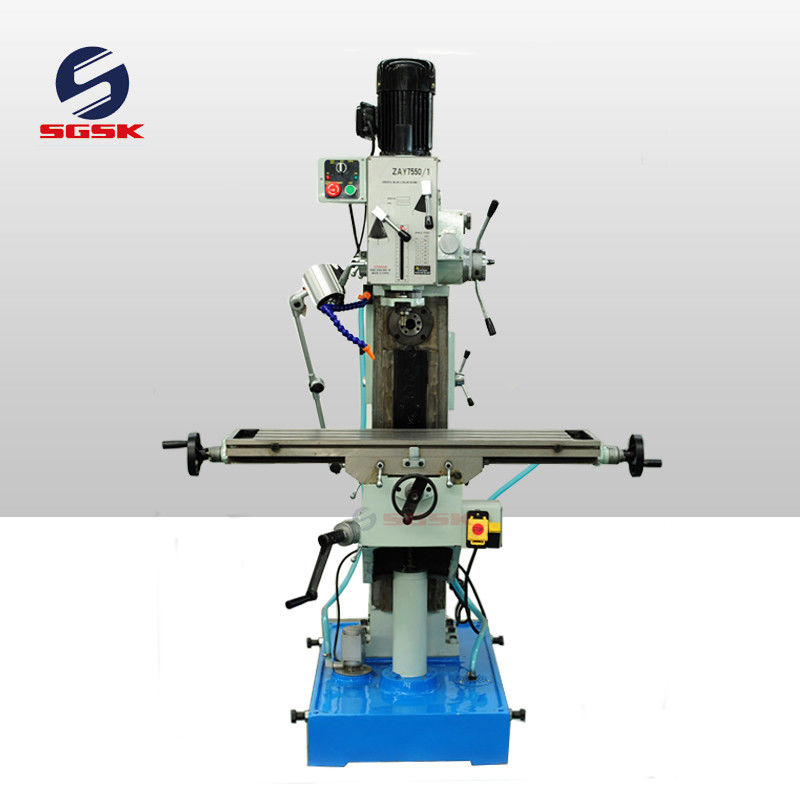

| Product Name: | Drill And Mill Machines ZAY7550 Drilling And Milling Machine | Application: | Metal Processing |
| Machine Type: | Milling Drilling Machine | Model: | ZAY7550 |
| Color: | Blue | Motor Power: | 1.5 |
| Max Drilling Capacity: | 50mm | Table Size: | 1000*240mm |
| Spindle Taper: | MT4 | Spindle Travel: | 130 |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Brazil, Peru, Chile |
| Port: | Qingdao Or Any Port In China |
|
Model
|
ZAY7532
|
ZAY7540
|
ZAY7545
|
ZAY7550
|
|
Max. drilling capacity
|
32mm
|
40mm
|
45mm
|
50mm
|
|
Max. milling capacity (end / face)
|
25/100mm
|
32/100mm
|
32/100mm
|
32/100mm
|
|
Swivel angle of headstock(perpendicular)
|
± 90°
|
± 90°
|
± 90°
|
± 90°
|
|
spindle taper(end/face)
|
M. T. 3 M. T. 4
|
M. T. 4
|
M. T. 4
|
M. T. 4
|
|
Distance from spindle nose to
worktable surface |
80-480mm
|
80-480mm
|
80-480mm
|
80-480mm
|
|
spindle travel
|
130mm
|
130mm
|
130mm
|
130mm
|
|
Beam travel
|
500mm
|
500mm
|
500mm
|
500mm
|
|
step of spindle speed(end/face)
|
612
|
612
|
612
|
612
|
|
range of spindle speed(end/face) 50Hz
|
80-1250
/38-1280 (r/min) |
80-1250
/38-1280 (r/min) |
80-1250
/38-1280 (r/min) |
80-1250
/38-1280 (r/min) |
|
60Hz (4 Poles)
|
95-1500
/45-1540 (r/min) |
95-1500
/45-1540 (r/min) |
95-1500
/45-1540 (r/min) |
95-1500
/45-1540 (r/min) |
|
Worktable size
|
800× 240mm
|
800× 240mm
|
800× 240mm
|
1000× 240mm
|
|
Forward and afterward
travel of worktable |
300mm
|
300mm
|
300mm
|
300mm
|
|
Left and right travel of worktable
|
585mm
|
585mm
|
585mm
|
785mm
|
|
Vertical travel of worktable
|
400mm
|
400mm
|
400mm
|
400mm
|
|
Min. distance from spindle
axis to column |
290mm
|
290mm
|
290mm
|
290mm
|
|
Power(end/face)
|
0.75KW(1HP)/1.5KW
|
1.1KW(1.5HP)/1.5KW
|
1.5KW(2HP)/1.5KW
|
1.5KW(2HP)
/1.5KW |
|
Voltage/Frequency
|
As customer' s requirement
|
As customer' s
requirement |
As customer' s
requirement |
As customer' s
requirement |
|
Cooling pump power
|
0.04KW
|
0.04KW
|
0.04KW
|
0.04KW
|
|
Net weight/Gross weight
|
910kg/1010kg
|
913kg/1013kg
|
915kg/1015kg
|
930kg/1030kg
|
|
Packing size
|
1020× 1350× 1850mm
|
1020× 1350× 1850mm
|
1020× 1350× 1850mm
|
1220× 1350×
1850mm |
|
Loading amount
|
8pcs/20 ' container
|
8pcs/20 ' container
|
8pcs/20 ' container
|
4pcs/20 '
container |
