mini drill mill ZAY7020 drilling and milling machine

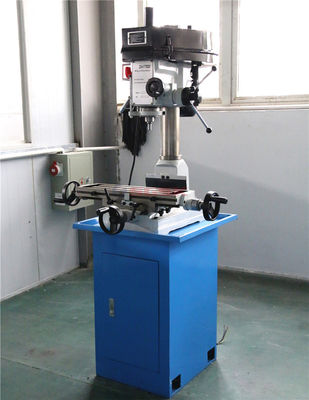

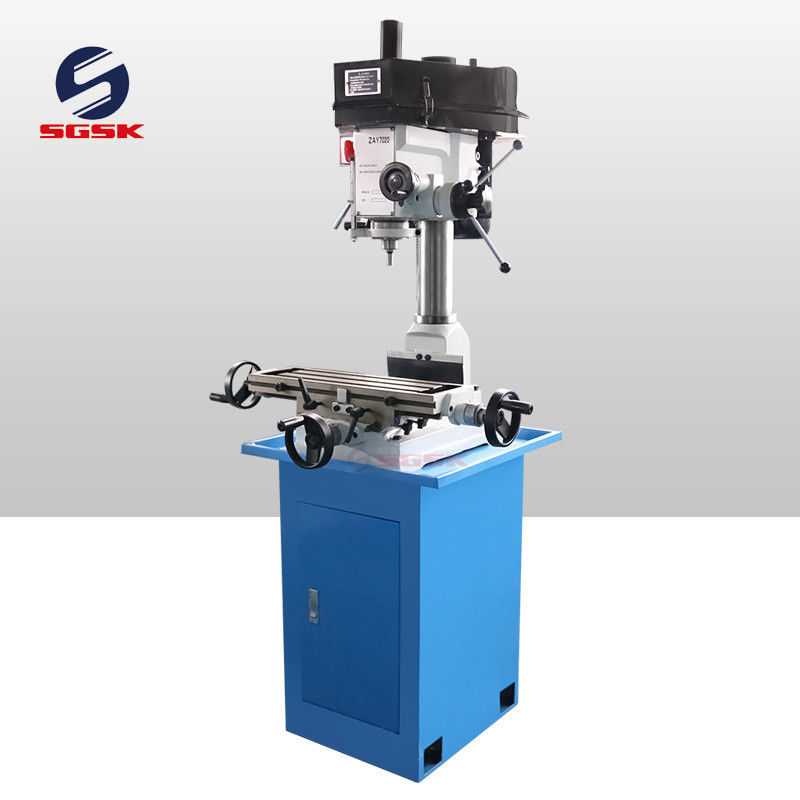

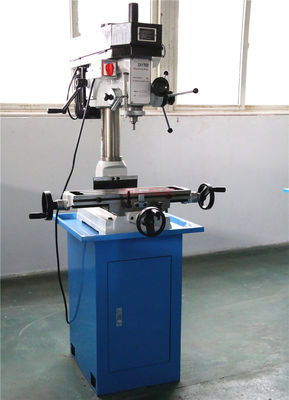

Large Image : mini drill mill ZAY7020 drilling and milling machine

Product Details:

Place of Origin:	China
Brand Name:	SGSK

Payment & Shipping Terms:

Price:	$1,120.00/Sets 1-4 Sets
Packaging Details:	Name: mini drill mill ZAY7020 drilling and milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Drilling & Milling Machine
Max. Drilling Dia. (mm):	20	Range Of Spindle Speed(r.p.m):	100 - 2200 R.p.m
CNC Or Not:	Normal	Voltage:	220V, 380V, 410V
Dimension(LWH):	6207501700	Power (kW):	0.55
Weight (KG):	190 KG	Warranty:	13 Months
Key Selling Points:	Competitive Price	Showroom Location:	Brazil, Peru, Chile
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Product Name:	Mini Drill Mill ZAY7020 Drilling And Milling Machine	Application:	Metal Processing
Machine Type:	Milling Drilling Machine	Model:	ZAY7020
Color:	Blue	Motor Power:	0.55
Max Drilling Capacity:	20mm	Table Size:	520*160
Spindle Taper:	MT3/R8	Spindle Travel:	290*140
Port:	Qingdao Or Any Port In China

mini drill mill ZAY7020 drilling and milling machine

Product Paramenters

Features:

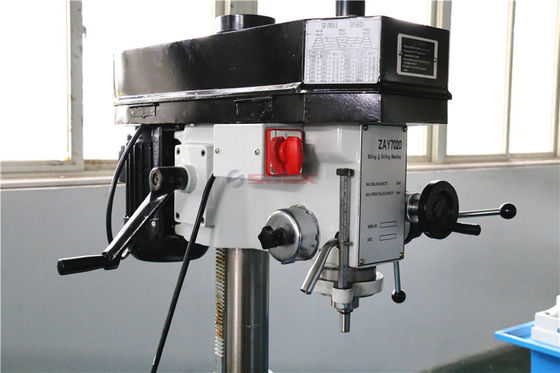

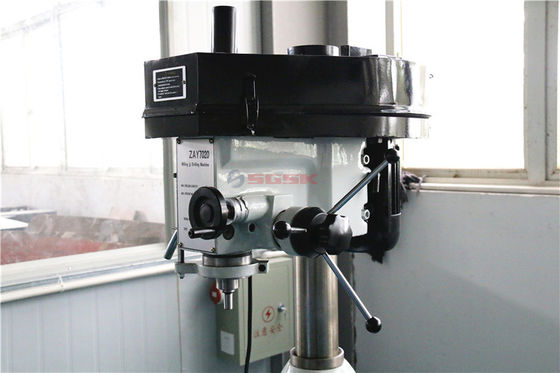

The main performance characteristics: driven and round column Milling, drilling, tapping. Boring and reaming Headstock swivels 360 horizontally Micro feed precision 12 steps speed Adjustable gibs on table precision Posive spindle lock Strong rigidity, powerful cutting and precisely positioning Standard accessories: Allen wrench Drift Spanner Drill chuck rod Screw-driver Draw bar and gasket Optional accessories: Stand Oil basin Machine vice Drill chuck Milling cutter holder Reducing sleeve Mill chuck Coolant system

Products Description

Product main technical specifications:

Model			ZAY7020	ZAY7032	ZAY7040	ZAY7045
Drilling capacity			20mm	32mm	40mm	45mm
Face milling capacity			63mm	63mm	80mm	80mm
End milling capacity			20mm	20mm	32mm	32mm
Distance from spindle nose to table			435mm	450mm	450mm	450mm
Min.distance from spindle axis to column			181.5mm	203.5mm	203.5mm	203.5mm
Spindle travel			85mm	130mm	130mm	130mm
Spindle taper			M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed			12	12	12	12
Range of spindle speed	50Hz	100-2200 r.p.m	80-2080 r.p.m	80-2080 r.p.m	80-2080 r.p.m
	60Hz	120-2640 r.p.m	100-2500 r.p.m	100-2500 r.p.m	100-2500 r.p.m
Swivel angle of headstock (horizontally)			360°	360°	360°	360°

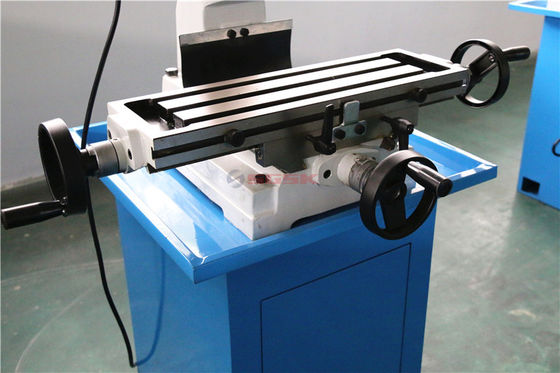

Table size			520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table			140mm	175mm	175mm	175mm
Left and right travel of table			290mm	500mm	500mm	500mm
Motor Power			0.55KW	0.75KW	1.1KW	1.5KW
Net weight/gross weight			130kg/190kg	280kg/330kg	283kg/333kg	285kg/335kg
Packing size			620×750×1000mm	1020×820×1160mm	1020×820×1160mm	1020×820×1160
