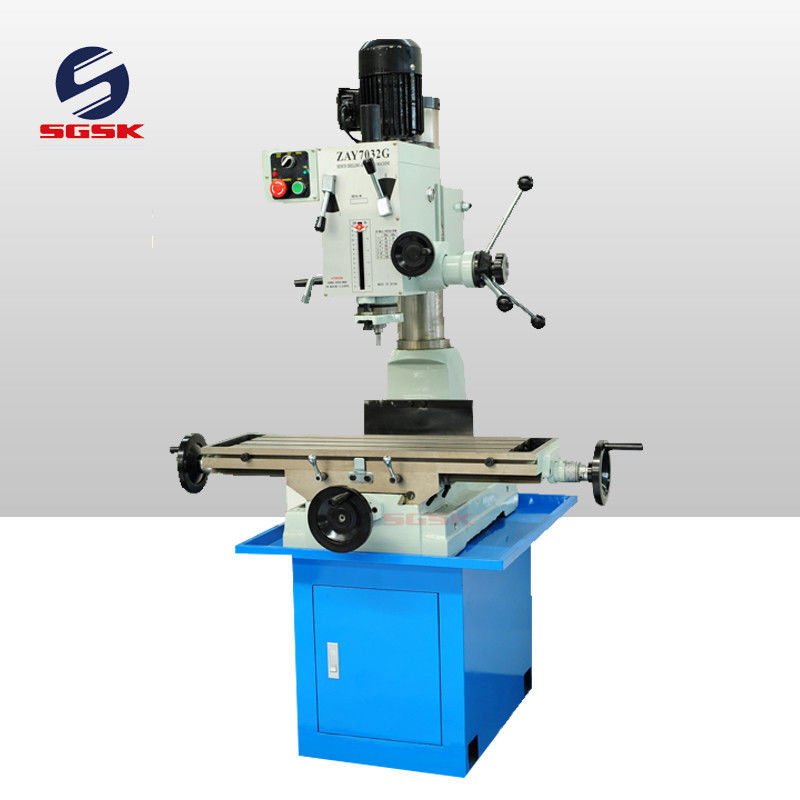

milling machine bench drill ZAY7032G drilling and milling machine

Name: milling machine bench drill ZAY7032G drilling and milling machine
Brand: SGSK
SKU: ZAY7032G
Price: 1 USD
Availability: InStock
Rating: 4.6 (153 reviews)

Large Image : milling machine bench drill ZAY7032G drilling and milling machine

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE
Model Number:	ZAY7032G

Payment & Shipping Terms:

Price:	$1,820.00/Sets 1-4 Sets
Packaging Details:	Name: milling machine bench drill ZAY7032G drilling and milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Drilling & Milling Machine
Max. Drilling Dia. (mm):	32	Range Of Spindle Speed(r.p.m):	80 - 1250 R.p.m
CNC Or Not:	Normal	Voltage:	220V, 380V, 410V
Dimension(LWH):	7708801160	Power (kW):	1.5
Weight (KG):	365 KG	Warranty:	13 Months
Key Selling Points:	Competitive Price	Showroom Location:	Brazil, Peru, Chile
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Product Name:	Milling Machine Bench Drill ZAY7032G Drilling And Milling Machine	Application:	Metal Processing
Machine Type:	Milling Drilling Machine	Model:	ZAY7032G
Color:	Blue	Motor Power:	1.1
Max Drilling Capacity:	32mm	End Milling Capacity:	20mm
Spindle Taper:	MT3	Spindle Travel:	130
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	Brazil, Peru, Chile
Port:	Qingdao Or Any Port In China

milling machine bench drill ZAY7032G drilling and milling machine

Product Paramenters

Features:

The main performance characteristics: 1. Gear-driven type and round column 2. Milling, drilling, boring, reaming 3. Headstock swivels 360 horizontally 4. Micro feed precision 5. Adjustable gibs on table precision. 6. Strong rigidity, powerful cutting and precisely positioning. Standard accessories: Allen wrench Drift Spanner Drill chuck rod Screw-driver Draw bar and gasket Optional accessories: Stand Oil basin Power feed attachment Machine vice Drill chuck Milling cutter holder Reducing sleeve Mill chuck Boring rod Tapping electrical system Coolant system

Products Description

Product main technical specifications:

ITEM	ZAY7020G	ZAY7032G	ZAY7040G	ZAY7045G
Drilling capacity	20mm	32mm	40mm	45mm
Face milling capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Distance from spindle nose to table	439mm	440mm	440mm	440mm
Min.distance from spindle axis to column	197.5mm	272.5mm	272.5mm	272.5mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angle of headstock (horizontally/perpendicularly)	360°/±90°	360°/±90°	360°/±90°	360°/±90°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Net weight/gross weight	130kg/190kg	315kg/365kg	318kg/368kg	320kg/370kg
Packing size	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160mm
