Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 800 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Table Travel (Y) (mm): | 320 |
| Table Travel (Z) (mm): | 450 | Spindle Taper: | ISO50 |
| Range Of Spindle Speed(r.p.m): | 60 - 540 R.p.m | Condition: | New |
| Table Travel (mm): | 800x320x450 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 4 | Voltage: | 220v, 380v, 410v |
| Dimension(L*W*H): | 2600x2200x2220 | Weight (KG): | 2700 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Chile, Peru, Indonesia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

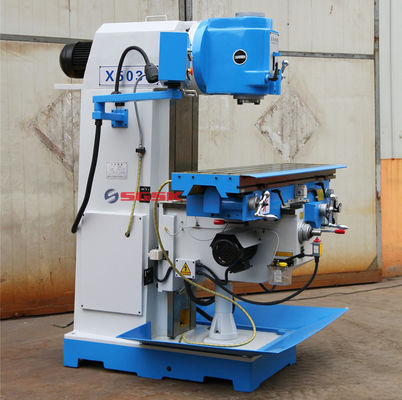

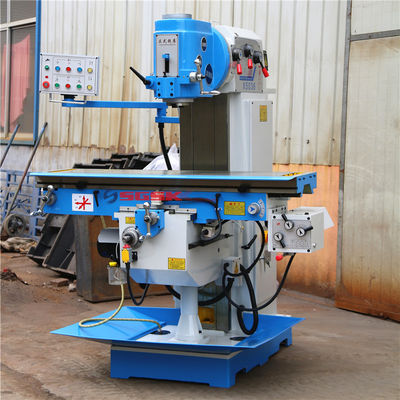

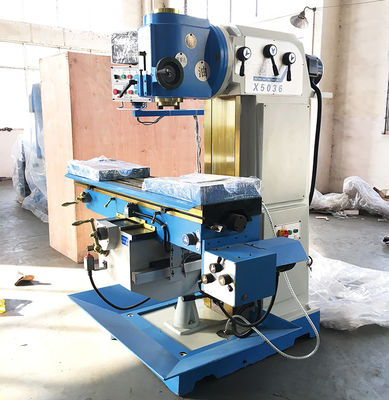

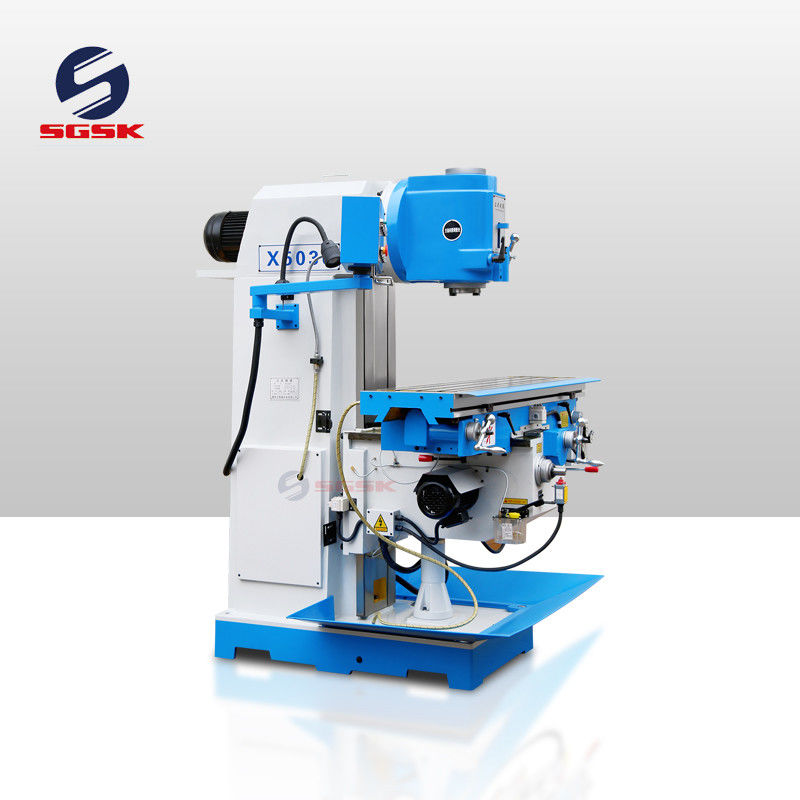

| Core Components: | Motor | Name: | Mini Metal Milling Machinery X5036B Vertical Milling Machine |
| Function: | Metal Milling | Color: | Blue |
| Table Size: | 1500x360mm | Precision: | High Precision |
| Table Travel: | 800x320x450 | Spindle Speed: | 60-1700 |
| T-slots(number *width *pitch ): | 3-18*80 | Brand: | SGSK |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
X5036B
|
X5036B-1
|
X5036K
|
|
Table size
|
mm
|
1500x360
|
1500x360
|
1500x360
|
|
Table travel
|
mm
|
800/320/450
|
1000/320/450
|
1000/320/450
|
|
T slot(number-width-pitch)
|
mm
|
3-18*80
|
3-18*80
|
3-18*80
|
|
Spindle taper
|
-
|
ISO50 7:24
|
ISO50 7:24
|
ISO50 7:24
|
|
Spindle speed range
|
rpm
|
60-1700(12steps)
|
60-1700(12steps)
|
60-1800(12steps)
|
|
Distance between spindle nose and table surface
|
mm
|
60-540
|
60-540
|
60-540
|
|
Distance between spindle axis to column surface
|
mm
|
360
|
360
|
360
|
|
Main motor power
|
kw
|
4
|
4
|
5.5
|
|
Weight
|
kg
|
2700
|
2700
|
3300
|
|
Overall dimension
|
mm
|
2600x2200x2220
|
2600x2200x220
|
2700x2300x2400
|
