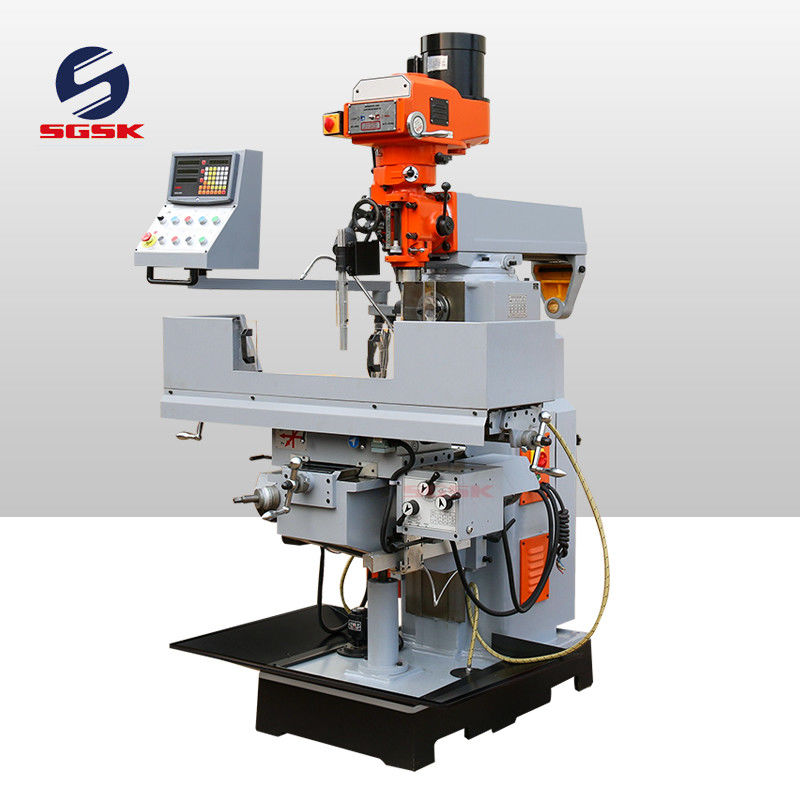

ZX6350T Drilling Milling Machine Plate Precision

Name: ZX6350T Drilling Milling Machine Plate Precision
Brand: SGSK
SKU: ZX6350T
Price: 5 USD
Availability: InStock
Rating: 4.7 (174 reviews)

Large Image : ZX6350T Drilling Milling Machine Plate Precision

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE
Model Number:	ZX6350T

Payment & Shipping Terms:

Price:	$5,320.00/Sets 1-9 Sets
Packaging Details:	Name: mill/drill machines ZX6350T drilling and milling plate precision drill mill<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Drilling & Milling Machine
Max. Drilling Dia. (mm):	50	Range Of Spindle Speed(r.p.m):	65 - 4500 R.p.m
CNC Or Not:	Normal	Voltage:	220V, 380V, 410V
Dimension(LWH):	145014002350	Power (kW):	1.5/3
Weight (KG):	1600 KG	Warranty:	13 Months
Key Selling Points:	Competitive Price	Showroom Location:	Brazil, Peru, Chile
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Product Name:	Mill/drill Machines ZX6350T Drilling And Milling Plate Drill Mill	Application:	Metal Processing
Machine Type:	Milling Drilling Machine	Model:	ZX6350T
Color:	Blue	Motor Power:	2.2
Max Drilling Capacity:	50	Table Size:	1200*280
Spindle Taper:	ISO40	Spindle Travel:	127
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	Brazil, Peru, Chile
Port:	Qingdao Or Any Port In China

mill/drill machines ZX6350T drilling and milling plate precision drill mill

Product Paramenters

The main performance characteristics:

1.Gear transmission for vertical/horizontal milling head
2.X /Y/Z axis auto feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching

Products Description

Product main technical specifications:

SPECIFICATIONS	Units	ZX6350T
Max. drilling dia.	mm	50
Max. end milling dia.	mm	100
Max. vertical milling dia.	mm	25
Max.boring dia.	mm	120
Max. tapping dia.	mm	M16
Distance between spindle nose and table surface	mm	80-460
Spindle taper	-	ISO40 (V / H)
Spindle speed range	rpm	65-4500 (V) 40-1300(H)
Spindle travel	mm	127
Table size	mm	1200280 Opt. 1500280
Table travel	mm	680280 Opt. 1000280
Table feed speed	mm/min	X/Y:22-555 Z:300 electric
Main motor power	kw	2.2( V)3( H)
Machine weight	kg	1600
Overall dimension	mm	145014002350
