ZX6332 Drilling Milling Machine Steel Metal Processing

Name: ZX6332 Drilling Milling Machine Steel Metal Processing
Brand: SGSK
SKU: ZX6332
Price: 5 USD
Availability: InStock
Rating: 4.9 (104 reviews)

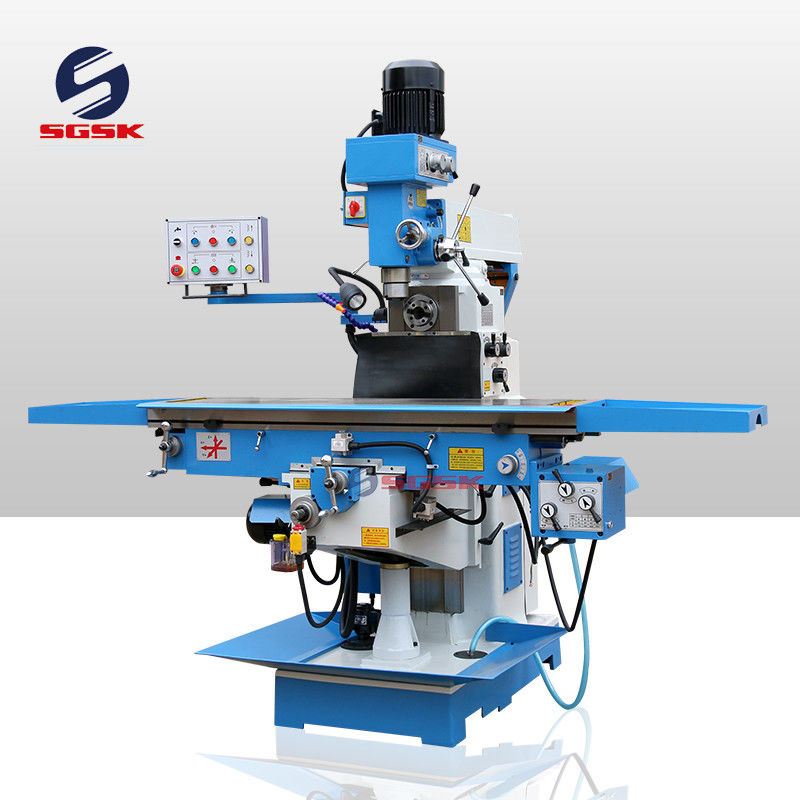

Large Image : ZX6332 Drilling Milling Machine Steel Metal Processing

Product Details:

Place of Origin:	China
Brand Name:	SGSK
Certification:	CE
Model Number:	ZX6332

Payment & Shipping Terms:

Price:	$5,890.00/Sets 1-9 Sets
Packaging Details:	Name: drill with milling ZX6332 milling and drilling machine milling drill steel<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	Type:	Drilling & Milling Machine
Max. Drilling Dia. (mm):	50	Range Of Spindle Speed(r.p.m):	115 - 1750 R.p.m
CNC Or Not:	Normal	Voltage:	220V, 380V, 410V
Dimension(LWH):	180016502500	Power (kW):	1.5/3
Weight (KG):	2050 KG	Warranty:	13 Months
Key Selling Points:	Competitive Price	Showroom Location:	Brazil, Peru, Chile
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor
Product Name:	Drill With Milling ZX6332 Milling And Drilling Machine Milling Drill	Application:	Metal Processing
Machine Type:	Milling Drilling Machine	Model:	ZX6332
Color:	Blue	Motor Power:	1.5
Max Drilling Capacity:	50	Table Size:	1500*320
Spindle Taper:	MT4 ISO40	Spindle Travel:	120
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	Brazil, Peru, Chile
Port:	Qingdao Or Any Port In China

drill with milling ZX6332 milling and drilling machine milling drill steel

Product Paramenters

Product main technical specifications:

SPECIFICATIONS	Units	ZX6332
Max. drilling dia.	mm	50
Max. end milling dia.	mm	100
Max. vertical milling dia.	mm	25
Max.boring dia.	mm	120
Max. tapping dia.	mm	M16
Distance between spindle nose and table surface	mm	100-460
Spindle taper	-	MT4(V) ISO40(H)
Spindle speed range	rpm	115-1750 (V) 40-1300(H)
Spindle travel	mm	120
Table size	mm	1500*320
Table travel	mm	800320/450 Opt. 1000320/450
Table feed speed	mm/min	X/Y:22-555 Z:300 electric
Main motor power	kw	1.5/2.2(V)3(H)
Machine weight	kg	2050
Overall dimension	mm	180016502500
