Heavy Duty Bed Type Milling Machine X716 Large Bed Type Vertical Milling Machine

Name: Heavy Duty Bed Type Milling Machine X716 Large Bed Type Vertical Milling Machine
Brand: SGSK
SKU: X716
Price: 53 USD
Availability: InStock
Rating: 5 (180 reviews)

Large Image : Heavy Duty Bed Type Milling Machine X716 Large Bed Type Vertical Milling Machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Certification:	CE
Model Number:	X716

Payment & Shipping Terms:

Price:	$53,290.00/Sets 1-9 Sets
Packaging Details:	Name : Heavy duty milling machine tool X716 large bed type vertical milling machine<br>Packaging :plywood case
Supply Ability:	100 Set/Sets per Month Heavy duty milling machine tool X716 large bed type vertical mil

Contact Now

Detailed Product Description

Table Travel (X) (mm):	1800	Number Of Axes:	3
Machining Capacity:	Heavy Duty	Table Travel (Y) (mm):	600
Table Travel (Z) (mm):	900	Spindle Taper:	ISO50
Range Of Spindle Speed(r.p.m):	40 - 1200 R.p.m	Condition:	New
Table Travel (mm):	1800x600x900mm	Year:	2019
Type:	Universal	Spindle Motor Power(kW):	11
Voltage:	110v 220v 380v 415v	Dimension(LWH):	4300x3200x3300mm
Weight (KG):	10000	Warranty:	13 Months
Key Selling Points:	Competitive Price	Applicable Industries:	Manufacturing Plant, Factory
Showroom Location:	Russia	Marketing Type:	New Product 2020
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Bearing, Motor, Gear, Engine, Gearbox
Name:	X716 Optimum Desktop Milling Machine Price	Model:	X716
Table Size:	2500*575	Max. Load Working Table:	3000
Rapid Feed Speed (X.Y):	3000	Rapid Feed Speed(Z):	1800
Overall Dimensions:	430032003300	Machine Weight:	10000
Power (kW):	11	After Warranty Service:	Video Technical Support, Online Support
Local Service Location:	UAE, Indonesia, Russia	Port:	Qingdao Or Any Port In China

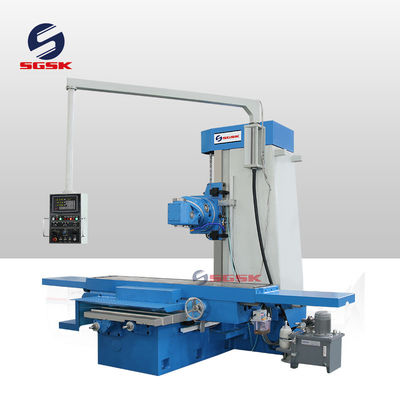

Heavy duty milling machine tool X716 large bed type vertical milling machine

The main performance characteristics:
X716 have advanced design, high bearing capacity, processing range wide, good rigidity, strong stability, vertical and horizontal milling can easily switch, convenient operation, to adapt to the in the ultra precision machining of large type parts.
Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

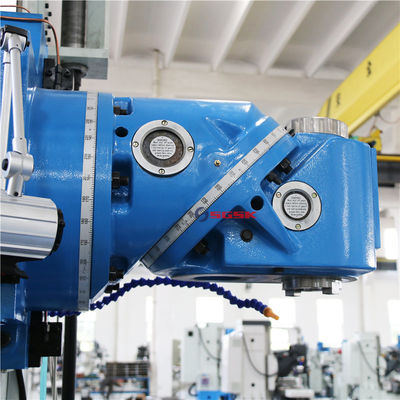

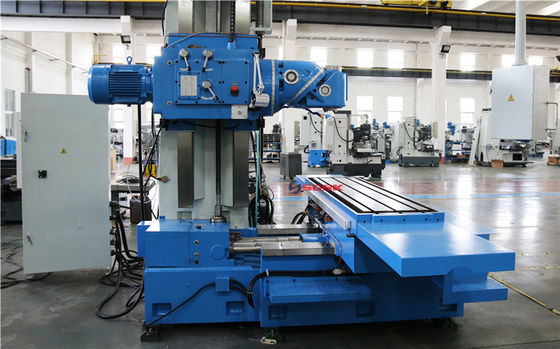

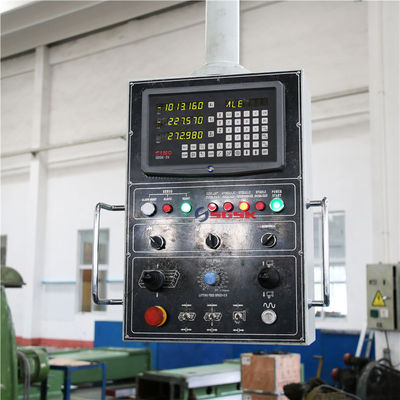

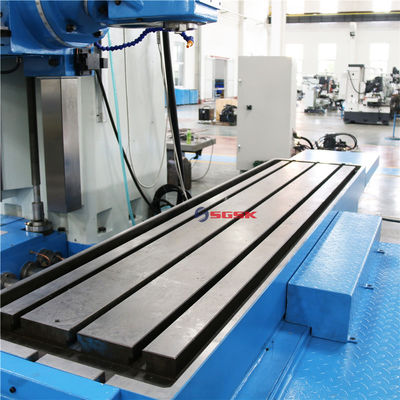

Details Display

Product main technical Specifications:

Specifications	Units	X716
Table size	mm	2500x575
Table stroke(X.Y.Z)	mm	1800x600x900
Min. distance from hor. Spindle axis to worktable surface	mm	0300
Min. distance from vertical spindle nose to worktable surface	mm	49
Distance from vertical spindle axis to column guide way	mm	110
T-type slot numbers / width /space	mm	3-22-152
Max. load working table	KG	3000
Spindle taper		ISO50
Longitudinal. transverse feed speed range	mm/min	20-2200
Rapid feed speed (X.Y)	mm/min	3000
Rapid feed speed(Z)	mm/min	1800
Feed speed range	mm/min	12-1320
Spindle speed range	rpm	40-1200
Spindle speed steps	steps	12
Spindle motor power	KW	11
Overall dimensions	mm	4300x3200x3300
Machine weight	KG	10000

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
