Column milling machine X6128 tooling milling machine

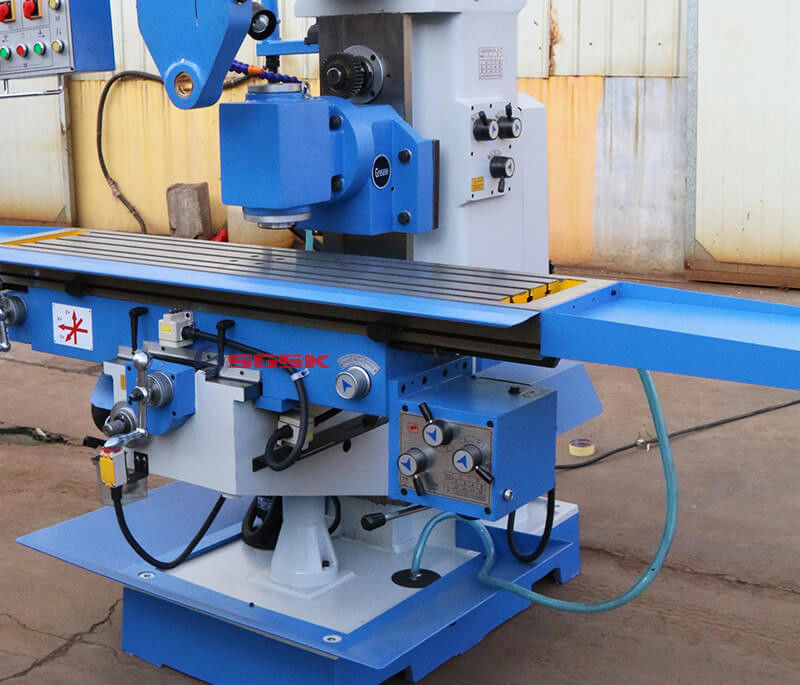

Large Image : Column milling machine X6128 tooling milling machine

Product Details:

Place of Origin:	Shandong, China
Brand Name:	SGSK
Model Number:	X6128A X6128C

Payment & Shipping Terms:

Price:	$37,790.00/Sets 1-4 Sets
Packaging Details:	Name:Column milling machine X6128 tooling milling machine<br>Packaging :plywood case
Supply Ability:	200 Set/Sets per Month Column milling machine X6128 tooling milling machine

Contact Now

Detailed Product Description

Table Travel (X) (mm):	620	Number Of Axes:	3
Machining Capacity:	Medium Duty	Table Travel (Y) (mm):	260
Table Travel (Z) (mm):	400 Mm	Spindle Taper:	ISO40
Range Of Spindle Speed(r.p.m):	32 - 8400 R.p.m	Condition:	New
Table Travel (mm):	620/260/400mm	Type:	Horizontal
Spindle Motor Power(kW):	3	Voltage:	220V 380V 415V
Dimension(LWH):	1725x1450x1750mm	Weight (KG):	1350
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Factory	Showroom Location:	None
Marketing Type:	New Product 2020	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, Engine, Gearbox	Name:	Column Milling Machine X6128 Tooling Milling Machine
Table Size:	1200x280mm	Table Stroke:	620/260/400mm
T-type Slot (numbers / Width /space):	5/14/50mm	Dis From Spindle To Table Surface:	110~510mm
Spindle Taper:	7:24 IS040	Spindle Speed Range:	8step 13~265rpm
Spindle Motor Power:	3kw	Overall Dimensions:	1725x1450x1750mm
Machine Weight:	1350kg	Port:	Qingdao Or Any Port In China

Column milling machine X6128 tooling milling machine

The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y all are gear drive automatic feed, Z to the electric lift.

Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Products Description

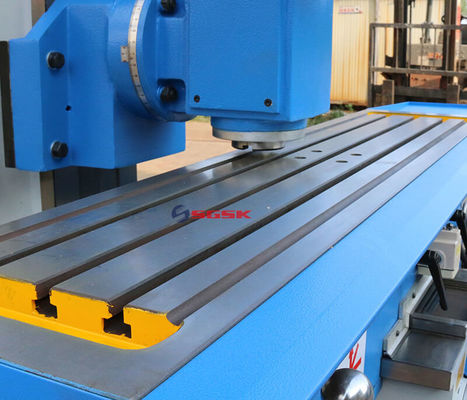

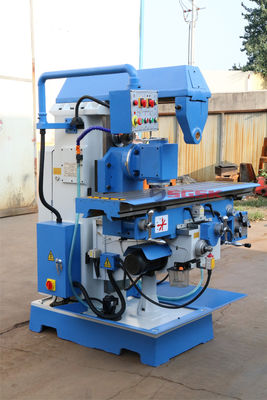

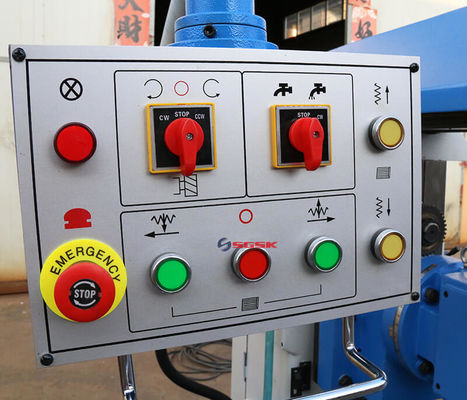

Details Display

Product main technical parameters:

Specifications	Units	X6128A	X6128C
Table size	mm	1200×280	1200×280
Table stroke	mm	620/260/400	620/260/400
T-type slot (numbers / width /space)	mm	5/14/50	5/14/50
Distance from spindle axis to table surface	mm	110～510	110～510
Spindle taper		7:24 IS040	7:24 IS040
Spindle speed range	rpm	8级 13～265	8级 32～840
Spindle motor power	KW	3	3
Overall dimensions	mm	1725×1450×1750	1725×1450×1750
Machine weight	Kg	1350	1380

Recommend Products

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
